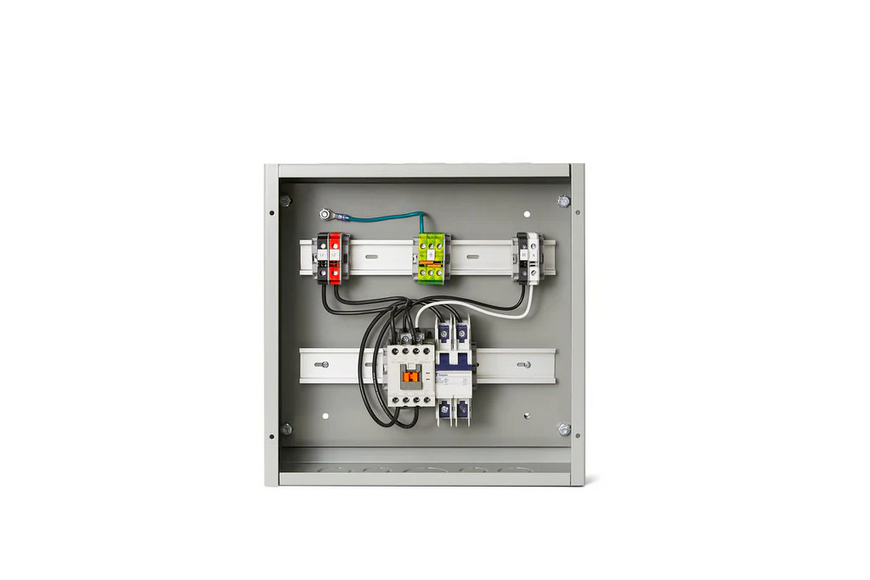

Infratech 14 4700 20B Cp-6000-1X Single Contactor Panel W/Timer Built With 20 Amp Breaker

Automated Power Management: Infratech CP-6000-1X Single Contactor Panel with Timer (14-4700-20B)

The Infratech 14-4700-20B combines high-capacity power switching with automated safety features. This CP-6000-1X configuration includes a built-in Digital Timer and an integrated 20 Amp Circuit Breaker, offering a comprehensive all-in-one control solution. The integrated timer ensures that heaters are never left on inadvertently, providing peace of mind and energy savings for residential patios or commercial venues. By utilizing a heavy-duty contactor, this panel manages the high-amperage draw of your heaters, allowing the internal timer and external switches to operate reliably without being exposed to the full electrical load.

> CRITICAL COMPATIBILITY NOTE: Contactor panels provide "all-or-nothing" power. They are NOT compatible with Infratech Infinite (Input) Regulators. This panel is strictly for On/Off operation and is designed for use with single or dual-element heaters within the 20 Amp circuit limit.

Technical Specifications

• Model: CP-6000-1X with Timer (14-4700-20B)
• Internal Protection: Integrated 20 Amp Circuit Breaker
• Control Logic: Built-in Digital Timer (Adjustable settings for automatic shut-off)
• Contactor Rating: 50 Amps (Panel total limited by the 20A breaker)
• Enclosure: NEMA-rated Weatherproof Enclosure

Key Features

• Integrated Timer: Eliminates the risk of heaters running overnight, extending element life and reducing utility costs.
• Built-in Overcurrent Protection: The 20 Amp breaker provides localized protection for the heater branch circuit, simplifying the primary electrical panel requirements.
• Centralized Command: Ideal for managing a single high-output heater or a small group of heaters that stay under the 20 Amp threshold.
• Weatherproof Durability: The rugged housing allows for installation in mechanical rooms or protected outdoor locations.
