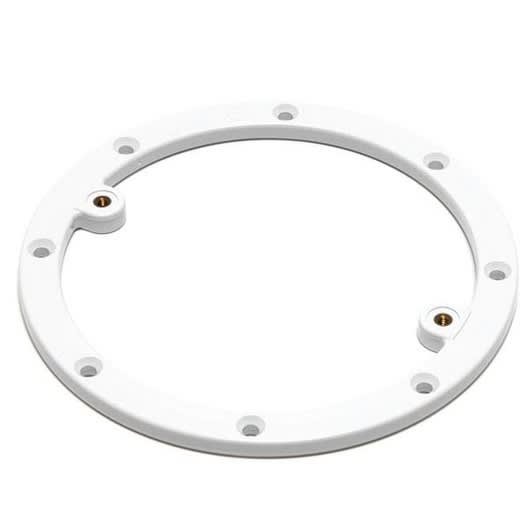

Hayward WGX1048B Suction Outlet Vinyl Ring With Inserts - White

What This Part Is Used For
The Hayward WGX1048B is a vinyl liner face ring used on compatible Hayward suction outlet fittings installed in vinyl liner pools. It secures the liner to the suction outlet body and provides a finished mounting surface for the cover. This component sits at the pool wall where the suction outlet penetrates the liner.

Why This Part Matters
If the vinyl ring is cracked or the inserts are stripped, the liner may not seal correctly around the suction fitting. That can lead to slow leaks behind the liner and long term wall damage. A proper face ring ensures even compression and secure cover mounting. Using the correct ring also helps maintain safe suction outlet assembly alignment.

Key Features and Specifications

• Manufacturer part number: WGX1048B
• Suction outlet vinyl liner face ring
• Color: White
• Includes integrated screw inserts
• For use with compatible Hayward suction outlet assemblies

Installation and Fitment Guidance
Typically replaced during liner changes or when repairing a leaking suction fitting. Ensure the liner is properly positioned and evenly compressed before tightening screws. Confirm by manufacturer part number before ordering.

About the Hayward Brand
Hayward produces a complete line of residential pool equipment including pumps, filters, heaters, automation systems, cleaners, and chlorination solutions. Their suction outlet fittings are engineered to integrate with Hayward circulation systems for consistent performance. Builders and service professionals rely on Hayward for compatibility across equipment pads and pool shells. Replacement parts are widely supported in the field.

Common Service Context
Techs usually encounter this ring during vinyl liner replacements or when addressing wall leaks around suction fittings. It is often identified after removing a cover and seeing cracked plastic or worn screw inserts.
