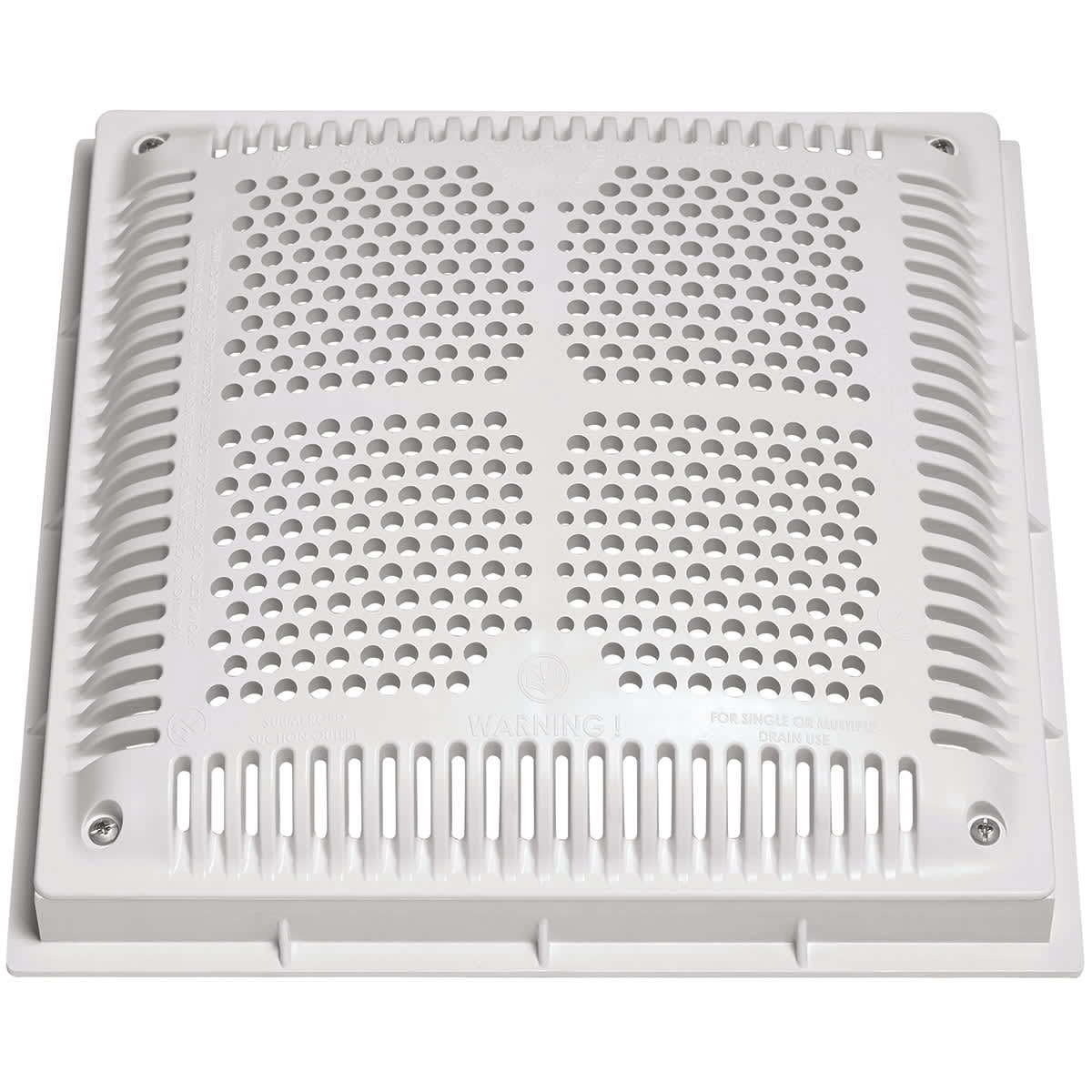

Hayward WG1032LV2PAK2 Dual Suction Frame and Cover Assembly - 12in x 12in 83.4 Square inch Low Flow

What This Part Is Used For
The Hayward WG1032LV2PAK2 is a dual suction frame and cover assembly for compatible dual suction outlets. It mounts at the pool wall or floor and provides the protective cover and frame over the suction openings. This version is listed as low flow with a 12in x 12in cover footprint and 83.4 square inch area.

Why This Part Matters
Cover and frame assemblies must match the suction body and the system’s hydraulic requirements. Using the wrong flow rating can restrict circulation or create compliance issues. A cracked cover or loose frame can create safety concerns and require immediate replacement. Correct fitment keeps the cover seated and the intake protected.

Key Features and Specifications

• Manufacturer part number: WG1032LV2PAK2
• Dual suction frame and cover assembly
• Cover size: 12in x 12in
• Area: 83.4 square inch
• Low flow rating

Installation and Fitment Guidance
Turn off circulation before servicing suction covers and inspect the mounting points for damage. Install the frame level and tighten hardware evenly to avoid warping. Confirm by manufacturer part number before ordering.

About the Hayward Brand
Hayward builds complete residential pool systems including pumps, filters, heaters, automation, cleaners, chlorination, and service parts. Their suction safety components are engineered to integrate with Hayward circulation equipment and common plumbing layouts. This system compatibility helps simplify repairs and upgrades. Hayward replacement parts are widely used in the field.

Common Service Context
This assembly is often replaced during drain inspections, remodels, or when updating older fittings. Techs recognize it by the larger 12in x 12in cover footprint and low flow labeling.
