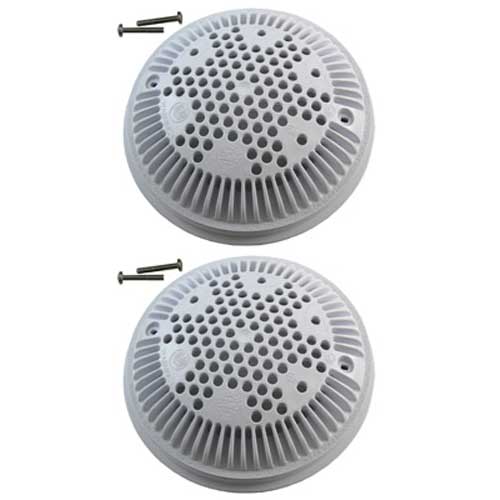

Hayward WG1030AVPAK2 Dual Suction Frame and Cover Assembly

What This Part Is Used For
The Hayward WG1030AVPAK2 is a dual suction frame and cover assembly used on compatible Hayward dual suction outlet bodies. It mounts in the pool wall or floor and provides the protective cover surface over the suction openings. This assembly restores a secure, properly seated suction cover and frame at the pool.

Why This Part Matters
Loose or cracked suction covers are a safety concern and a common reason pools fail inspection. Replacing the frame and cover together helps ensure proper seating and hardware engagement. An incorrect assembly can lead to poor fitment and repeated service issues. Keeping the suction cover intact supports reliable circulation and safe intake protection.

Key Features and Specifications

• Manufacturer part number: WG1030AVPAK2
• Dual suction frame and cover assembly
• Includes frame and cover for compatible dual suction bodies
• For pool wall or floor suction applications
• Used to restore proper suction cover mounting

Installation and Fitment Guidance
Shut down circulation before removing any suction covers and inspect the body for stripped inserts or damage. Tighten hardware evenly so the cover sits flat and secure. Confirm by manufacturer part number before ordering.

About the Hayward Brand
Hayward manufactures a full ecosystem of residential pool equipment including pumps, filters, heaters, automation, cleaners, and chlorination systems. Their suction fittings and safety components integrate with Hayward hydraulic designs used across many pool builds. This compatibility simplifies replacements during service calls and renovations. Hayward parts are widely supported in the pool industry.

Common Service Context
Technicians commonly replace this assembly during drain cover updates, remodels, or when existing covers show cracks or looseness. It is typically identified when the old frame is warped or the cover will not seat properly.
