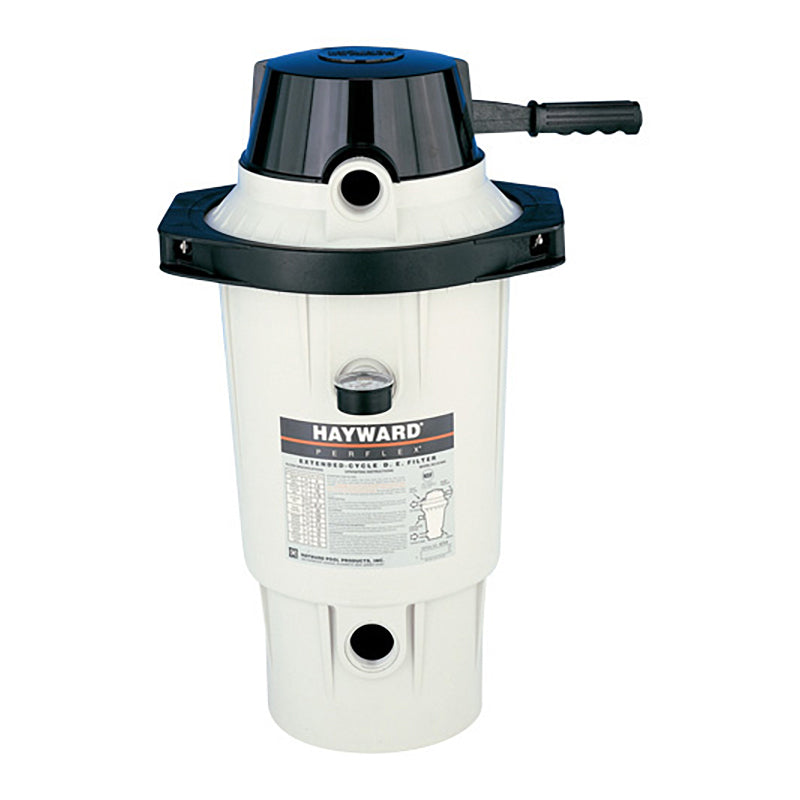

Hayward W3EC40AC 20 SQFt. Perflex D.E. Filter
Hayward W3EC40AC 20 SQFt. Perflex D.E. Filter
Hayward W3EC40AC Perflex 20 Sq. Ft. Extended-Cycle D.E. Pool Filter
The Hayward W3EC40AC Perflex D.E. Filter provides exceptionally clear pool water in a compact, easy-to-maintain design. Built for residential above-ground pools, this 20-square-foot diatomaceous earth filter uses Hayward's proven Flex-Tube filtration system to capture extremely fine dirt, debris and suspended particles that may pass through less precise filtration systems.
Unlike a traditional D.E. filter that requires routine backwashing, the Perflex design uses an integrated bump handle to flex the internal tubes, redistribute the D.E. coating and help extend the filtration cycle. This provides powerful D.E. filtration with less water waste and a simple maintenance process.
Why Choose the Hayward W3EC40AC Perflex Filter?
The W3EC40AC combines the water clarity of D.E. filtration with a straightforward, space-saving filter design. Water enters the filter and passes through D.E.-coated Flex-Tubes, where fine contaminants are captured before clean water returns to the pool.
As debris builds up, the bump handle can be operated to flex the tubes and redistribute the D.E. powder. This process, known as regeneration, can restore flow and extend the filter cycle without immediately opening the tank or performing a conventional backwash.
A Hayward Perflex filter uses flexible tubular filter elements instead of traditional D.E. grids. The built-in bump mechanism flexes these tubes and redistributes the D.E. coating, helping restore filtration performance between full cleanings.
Key Features
- ✓ Genuine Hayward W3EC40AC Perflex pool filter
- ✓ Provides 20 square feet of effective filtration area
- ✓ Uses D.E. filter media to capture very fine pool contaminants
- ✓ Patented Flex-Tube elements deliver high-quality water filtration
- ✓ Integrated bump handle helps regenerate the D.E. coating
- ✓ Extended-cycle design reduces the need for frequent complete cleanings
- ✓ Does not require a traditional multiport backwash valve
- ✓ Compact vertical design helps conserve equipment-pad space
- ✓ Heavy-duty clamp provides access to the internal filter assembly
- ✓ Designed for residential above-ground pool applications
Hayward W3EC40AC Specifications
| Manufacturer | Hayward |
|---|---|
| Model Number | W3EC40AC |
| Product Series | Hayward Perflex Extended-Cycle |
| Filter Type | Diatomaceous earth pool filter |
| Filtration Area | 20 square feet |
| Design Flow Rate | 40 gallons per minute |
| 8-Hour Turnover | Up to 19,200 gallons |
| 10-Hour Turnover | Up to 24,000 gallons |
| D.E. Media Requirement | 4 pounds |
| Filter Element Type | Hayward Flex-Tube element assembly |
| Tank Closure | Clamp-style closure |
| Pool Type | Residential above-ground pool |
| Valve Included | No multiport valve required or included |
| Pump Included | No, filter only |
How the Perflex Bump Handle Works
When the filter pressure rises and water flow begins to decrease, the circulation pump is turned off and the bump handle is operated according to Hayward's instructions. This flexes the internal tubes, loosens the accumulated D.E. and debris, and redistributes the filter media across the elements.
Regenerating the filter can help restore flow and extend the current filtration cycle. When bumping no longer produces an adequate reduction in pressure, the filter should be drained, cleaned and recharged with the correct amount of fresh D.E. media.
Frequently Asked Questions
Is the Hayward W3EC40AC a cartridge filter?
No. It is a D.E. filter that uses flexible tubular elements coated with
diatomaceous earth filter media. It does not use a replaceable pleated
cartridge.
How much D.E. does the W3EC40AC require?
The filter requires approximately 4 pounds of D.E. media
when initially charged or after a complete cleaning.
Does this filter need to be backwashed?
The Perflex design does not use a conventional multiport backwash valve.
The internal elements are regenerated with the bump handle, and the filter
is periodically drained and cleaned when regeneration no longer restores
normal pressure and flow.
What size pool can the Hayward W3EC40AC handle?
Its rated flow supports up to approximately
19,200 gallons with an 8-hour turnover or
24,000 gallons with a 10-hour turnover. Actual sizing
should also account for the pump flow rate, plumbing, pool usage and local
turnover requirements.
Does the W3EC40AC include a pool pump?
No. This listing is for the filter assembly only. A compatible pump,
plumbing connections and D.E. filter media are required separately unless
specifically stated otherwise.
Is W3EC40AC the same size as EC40AC?
The W3EC40AC is the open-line version of Hayward's EC40AC 20-square-foot
Perflex filter. Always use the complete model number when confirming
replacement parts.
What Is Included?
- Hayward W3EC40AC Perflex filter assembly
- Internal Flex-Tube element assembly
- Bump-handle mechanism
- Clamp-style tank closure
- Pressure gauge and applicable factory-installed filter components
Installation and Sizing Reminder
Position the filter on a solid, level surface with enough clearance to reach the bump handle, pressure gauge, drain and tank clamp. The pump selected for the system should not exceed the filter's rated flow or pressure limits.
For the best results, confirm the pool volume, required turnover rate, pump performance and plumbing size before installation. Improperly sized pumps can reduce filtration performance or place unnecessary stress on the filter system.
