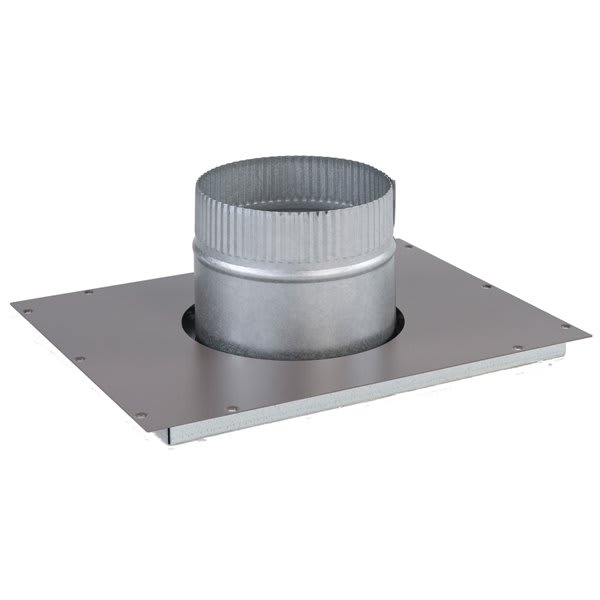

Hayward UHXNEGVT12506 Negative Pressure Vertical Indoor Vent Kit - 5 inch x 6 inch

What This Part Is Used For
The Hayward UHXNEGVT12506 is a negative pressure vertical indoor vent kit for compatible Hayward pool heaters. It is listed as a 5 inch x 6 inch transition for vertical indoor venting configurations. This kit installs at the heater vent outlet as part of the indoor exhaust routing.

Why This Part Matters
Indoor venting must be properly sized and matched to the heater to maintain consistent draft. Incorrect vent transitions can lead to poor exhaust flow and nuisance shutdowns. Using the correct kit helps ensure the heater vents safely and predictably in a negative pressure setup. This is especially important when replacing heaters where vent sizing must match the existing run.

Key Features and Specifications

• Manufacturer part number: UHXNEGVT12506
• Negative pressure vertical indoor vent kit
• Transition size: 5 inch x 6 inch
• Used for vertical indoor venting on compatible Hayward heaters
• Supports correct vent connection at heater outlet

Installation and Fitment Guidance
Install with the heater powered off and allow the unit to cool before vent work. Verify the transition size matches your vent pipe and the heater vent requirements. Confirm by manufacturer part number before ordering.

About the Hayward Brand
Hayward offers an integrated equipment ecosystem including pumps, filters, heaters, automation, cleaners, chlorination products, and service parts. Their heater accessories support common installation scenarios, including indoor venting configurations. This compatibility helps technicians maintain safe operation during replacements and upgrades. Hayward replacement parts are widely supported across the industry.

Common Service Context
Technicians typically use this kit during indoor heater installs or when correcting a draft issue caused by an incorrect vent transition. It is often identified when the heater outlet and vent run require a 5 inch to 6 inch connection.
