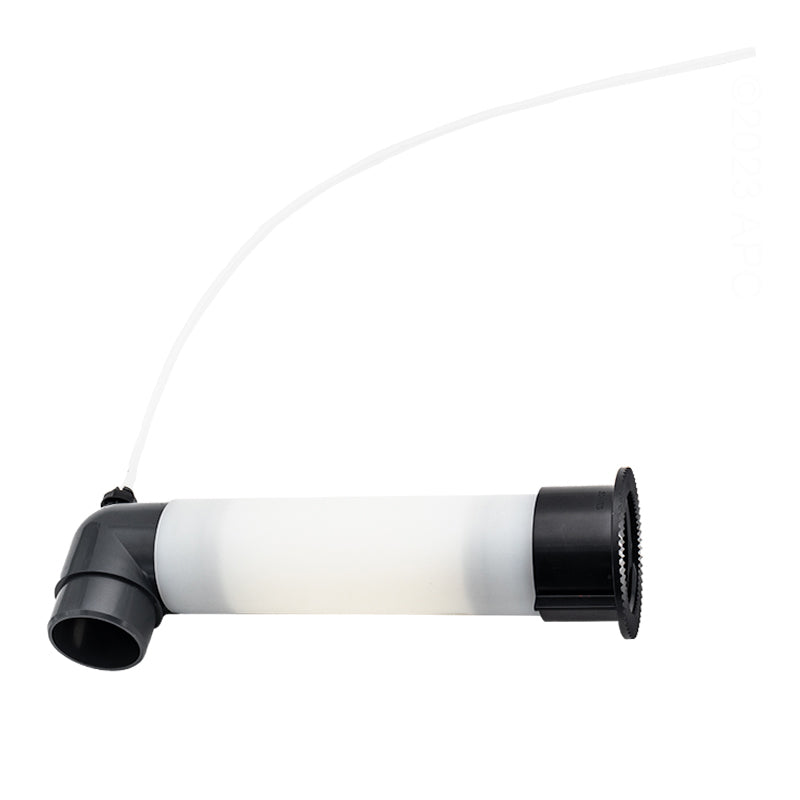

The Hayward SX244CD2FWS Bottom Elbow Assembly with Air Tube is a genuine OEM replacement component designed for compatible Hayward ProSeries S244S side-mount sand filters. This updated assembly replaces a worn, cracked or damaged lower elbow and restores the internal connection between the filter plumbing and air tube system.
Supplied as an assembled replacement part, it is ideal for repairing the internal lower plumbing of an S244S filter without replacing the complete sand filter tank.
Product Overview
The bottom elbow is an internal plumbing component located inside the filter tank. It helps direct water through the lower portion of the filter assembly while supporting the air tube connection used by the filter's internal system.
Damage to this part may result in internal leaks, poor filtration, disturbed sand or improper flow through the filter. Replacing the damaged elbow with the correct OEM assembly helps return the filter to its intended operating configuration.
Key Features
- Genuine Hayward replacement filter part
- Manufacturer part number SX244CD2FWS
- Includes the bottom elbow assembly and air tube
- Designed for the Hayward S244S ProSeries sand filter
- Updated replacement configuration for compatible S244S filter assemblies
- Helps restore proper internal water flow and filter operation
- Suitable for residential in-ground pool filtration systems
Compatibility
| Manufacturer | Hayward |
|---|---|
| Part Number | SX244CD2FWS |
| Part Type | Bottom elbow assembly with air tube |
| Compatible Filter | Hayward ProSeries S244S side-mount sand filter |
| Filter Size | 24-inch sand filter |
| Pool Type | In-ground pool |
| Condition | New replacement part |
No. This assembly is specifically associated with the Hayward S244S. It should not be assumed to fit S310S, top-mount ProSeries filters or other Hayward filter sizes. Verify the filter model printed on the tank label before ordering.
When Should the Bottom Elbow Be Replaced?
This part may need replacement when:
- The existing elbow is cracked, split or physically damaged
- The air tube or its connection has broken
- Internal filter plumbing has become loose or disconnected
- Sand is returning to the pool due to damage inside the filter
- The filter is being rebuilt and the lower elbow assembly is worn
Frequently Asked Questions
Is the air tube included?
Yes. The SX244CD2FWS is identified as the S244S bottom elbow assembly with
the updated air tube.
Is this the top elbow?
No. This is the lower or bottom elbow assembly. The top elbow and diffuser
are separate filter components.
Will this fit the Hayward S310S?
No. Hayward lists a different bottom elbow assembly for the larger S310S
filter. Confirm the exact tank model before ordering.
Is this a complete lateral assembly?
No. This listing is for the bottom elbow assembly with air tube. The
lateral holder, vertical pipe and laterals may be sold separately unless
specifically stated otherwise.
