• Hayward Replacmnt Lateral Assy -S244S- | SX242MA1
1 1

Hayward

Hayward Sand Filter Lateral Assembly, for S244SX, Replacement | SX242MA1

Hayward Sand Filter Lateral Assembly, for S244SX, Replacement | SX242MA1

$111.50
$144.95 $111.50
Sale Sold out
Shipping calculated at checkout.
Discontinued and Replaced
Hayward part SX242MA1 has been discontinued. Hayward identifies SX242MA1S as the current manufacturer-approved replacement. Orders for the original SX242MA1 will be fulfilled with the updated SX242MA1S assembly.

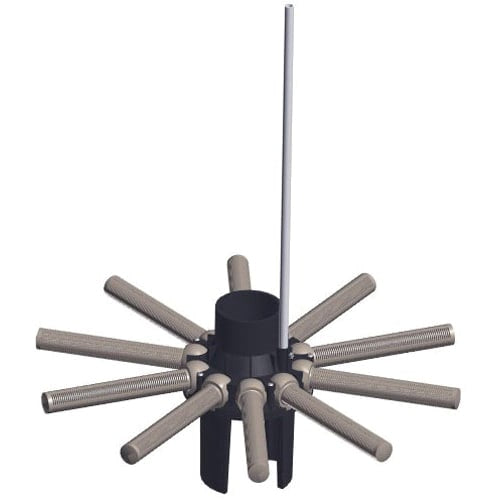

Hayward SX242MA1 Replacement Lateral Assembly

The Hayward SX242MA1 is an internal lateral and underdrain assembly originally used in compatible Hayward S244S side-mount sand filters. It sits beneath the sand bed and helps distribute water evenly through the filter while keeping filter sand inside the tank.

Because the original SX242MA1 is no longer available, Hayward now directs customers to the updated SX242MA1S lateral holder assembly. The replacement may look different from the original component, but it is intended to perform the same essential filtration and underdrain function.

Current Replacement Part
Hayward SX242MA1S
Manufacturer-approved substitute for discontinued SX242MA1

SX242MA1 vs. SX242MA1S

What Stays the Same

  • Performs the internal lateral and underdrain function
  • Helps retain sand inside the filter tank
  • Distributes water through the sand media bed
  • Supports normal filtration and backwashing
  • Serves as the replacement pathway for the original SX242MA1

What Is Different

  • SX242MA1 is the discontinued original part number
  • SX242MA1S is the current replacement part number
  • The holder, standpipe, or lateral arrangement may have an updated appearance
  • Packaging and manufacturer labeling may reference the newer assembly design
  • The new assembly may not look identical to the part removed from the filter
Confirm Your Filter Model This listing is associated with the Hayward S244S side-mount sand filter application. Verify the model number printed on the filter tank before ordering. Similar-looking Hayward sand filters can use different standpipes, lateral assemblies, or internal connection designs.
Product Specifications
Manufacturer Hayward
Original Part Number SX242MA1
Current Replacement SX242MA1S
Product Type Sand filter lateral and underdrain assembly
Filter Application Compatible Hayward S244S side-mount sand filters
Condition SX242MA1 discontinued; order SX242MA1S
Compatibility and Fitment

Hayward lists SX242MA1S as the replacement for discontinued SX242MA1. It is designed to replace the original lateral assembly used in its specified compatible filter application.

Do not select this part based only on filter diameter or appearance. Confirm the complete filter model and compare the existing standpipe and internal connection before installation.

Installation Guidance
  1. Turn off the pump and disconnect power to the filtration system.
  2. Relieve all pressure from the filter before opening the tank.
  3. Remove the filter sand as necessary to access the underdrain assembly.
  4. Inspect the standpipe, hub connection, laterals, and tank interior for additional damage.
  5. Install the replacement according to the filter manufacturer’s service instructions.
  6. Refill with the correct type and quantity of filter sand before restarting the system.
Pool filters operate under pressure. Installation should be completed by a qualified pool professional when the owner is unfamiliar with pressure-filter service.
Frequently Asked Questions
Is SX242MA1 still available? No. SX242MA1 has been discontinued and replaced by Hayward part SX242MA1S.
Will I receive SX242MA1 or SX242MA1S? Orders placed for the discontinued SX242MA1 should be fulfilled with the current SX242MA1S replacement assembly.
Why does the replacement look different? Hayward updated the assembly and part number. The holder, standpipe, or lateral configuration may differ visually while serving the same essential underdrain and filtration function.
What symptoms can indicate a damaged lateral assembly? Common symptoms include filter sand returning to the pool, poor filtration, internal flow problems, or visible cracks discovered during filter service.
Does this include the complete sand filter? No. This is an internal replacement assembly only. The filter tank, control valve, sand media, and external plumbing are not included unless specifically stated.
Replacement Ordering Information
Replace SX242MA1 with Hayward SX242MA1S
