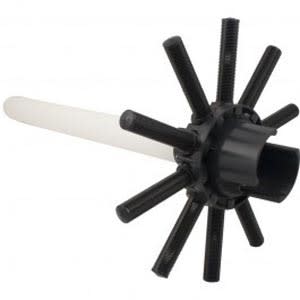

Hayward SX160QA Sand Filter Lateral Assembly With Center Pipe - For S160T

What This Part Is Used For
The Hayward SX160QA is a lateral assembly with center pipe used inside the Hayward S160T sand filter as listed. It forms the internal underdrain that collects filtered water while keeping sand media in the tank. This assembly sits at the bottom of the filter and is accessed during sand changes and internal repairs.

Why This Part Matters
When laterals crack or the center pipe connection fails, sand can return to the pool through the returns and water clarity drops quickly. A compromised underdrain also makes backwashing less effective and can cause channeling through the sand bed. Replacing the correct assembly restores proper media retention and consistent filtration flow. This is most often handled during a sand replacement or after freeze damage.

Key Features and Specifications

• Manufacturer part number: SX160QA
• Sand filter lateral assembly with center pipe
• Specified for Hayward S160T sand filter
• Internal underdrain component that helps retain sand media
• Installs at the bottom of the filter tank

Installation and Fitment Guidance
Shut off the pump and fully relieve pressure before opening the filter tank. Remove sand carefully and confirm the laterals and center pipe are seated correctly before refilling media and reassembling the top. Confirm by manufacturer part number before ordering.

About the Hayward Brand
Hayward manufactures a complete residential pool equipment ecosystem including pumps, filters, heaters, automation controls, cleaners, chlorination systems, and service parts. Their sand filters are widely installed and supported with internal service components like laterals and center pipes to extend equipment life. This compatibility helps technicians restore filtration performance without replacing the entire filter. Hayward replacement parts are widely supported across the pool industry.

Common Service Context
Techs typically replace this assembly when sand starts blowing into the pool or the filter cannot maintain clarity after backwashing. It is often confirmed during a sand change when laterals are found cracked or broken.
