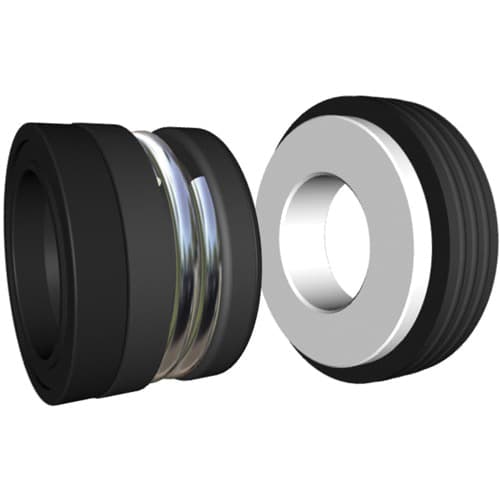

Hayward SPX3200SA Seal Assembly

What This Part Is Used For
The Hayward SPX3200SA is a seal assembly for compatible TriStar and EcoStar pump models. It prevents water from leaking along the motor shaft where it enters the wet end. This component is located between the impeller and motor.

Why This Part Matters
A failed shaft seal allows water to leak into the motor area, often causing bearing failure or motor damage. Early signs include dripping under the pump or rust marks on the motor face. Replacing the seal during service protects the motor and extends pump life.

Key Features and Specifications

• Manufacturer part number SPX3200SA
• Shaft seal assembly
• For TriStar and EcoStar pump models
• Prevents water intrusion into motor
• Installed between impeller and motor

Installation and Fitment Guidance
Replace anytime the pump is disassembled for impeller or motor service. Avoid touching seal faces during installation. Confirm by manufacturer part number before ordering.

About the Hayward Brand
Hayward produces pumps, filters, heaters, automation systems, and cleaners for residential pools. Their TriStar and EcoStar lines are common on modern equipment pads. Using genuine seals maintains proper separation between wet and dry components. Hayward parts support long-term system reliability.

Common Service Context
Technicians replace this seal when addressing leaks at the motor face or during full pump rebuilds. It is one of the most common service parts in pump maintenance.
