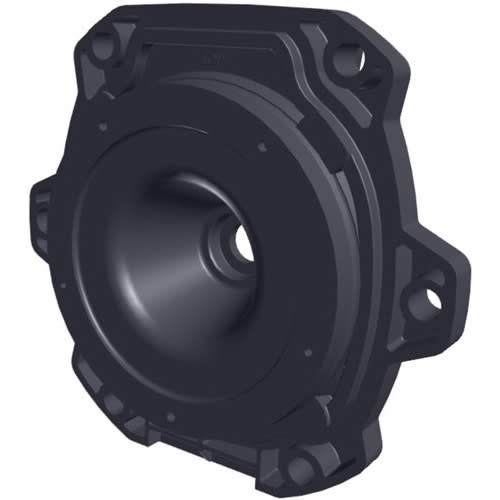

Hayward SPX3200E Seal Plate

What This Part Is Used For
The Hayward SPX3200E is a seal plate for compatible TriStar and EcoStar pump models. It sits between the motor and pump housing and supports the shaft seal assembly. This component forms a critical separation between wet and dry sections.

Why This Part Matters
A cracked or warped seal plate can cause recurring shaft seal leaks. Improper alignment may allow water to reach the motor face. Replacing a damaged seal plate restores proper sealing and protects the motor.

Key Features and Specifications

• Manufacturer part number SPX3200E
• Seal plate assembly component
• For TriStar and EcoStar pumps
• Supports shaft seal installation
• Separates wet end from motor

Installation and Fitment Guidance
Replace during shaft seal service if cracking or wear is present. Ensure proper alignment during reassembly. Confirm by manufacturer part number before ordering.

About the Hayward Brand
Hayward produces pumps, filters, heaters, automation systems, and cleaners designed to operate together. Their variable and single speed pumps are common on residential equipment pads. Correct wet end components ensure safe separation of water and electrical components. Hayward parts maintain factory compatibility.

Common Service Context
Technicians replace this part when addressing seal failures or freeze damage. It is inspected whenever the pump motor is removed.
