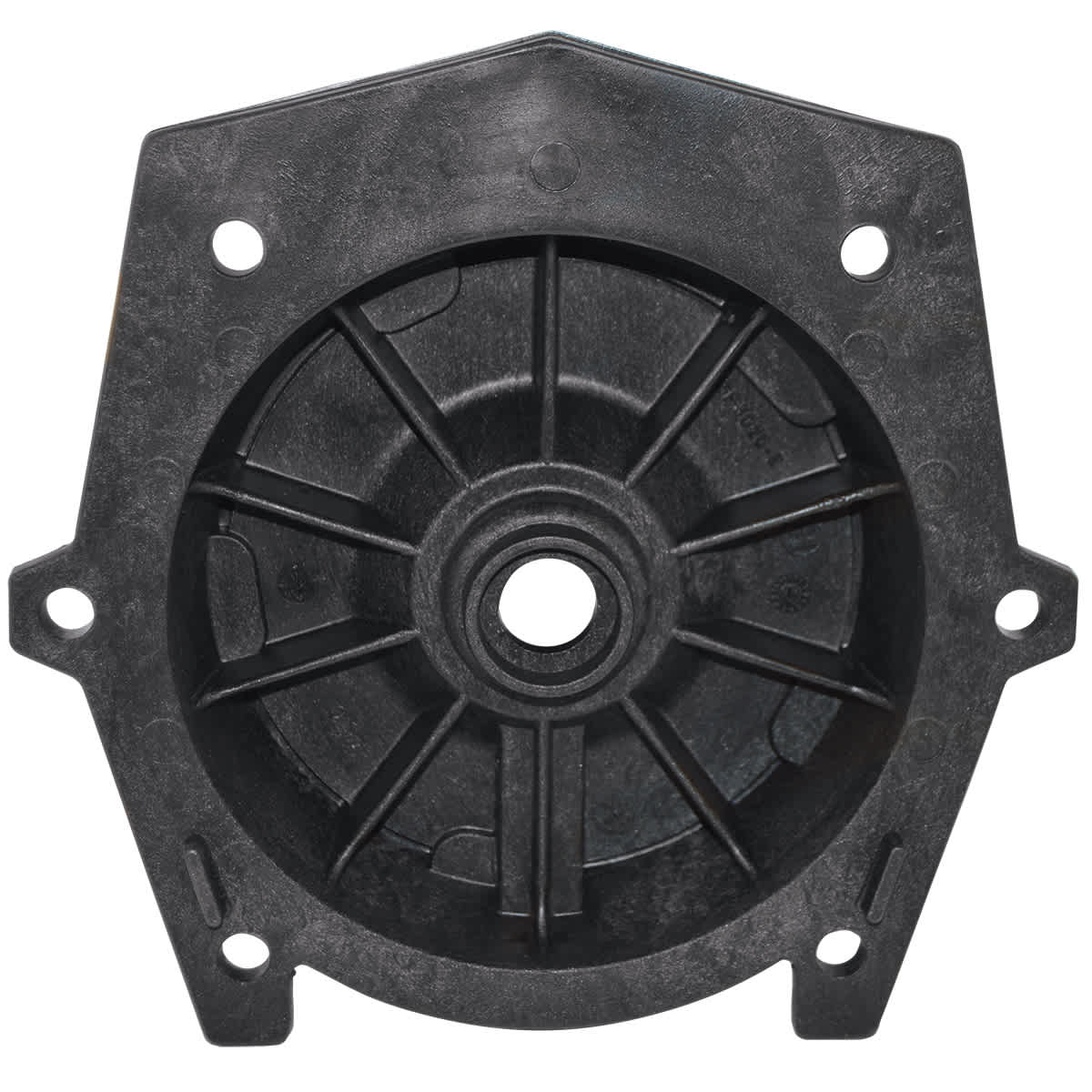

Hayward SPX3020E Seal Plate - 2-1/2 HP and 3 HP

What This Part Is Used For
The Hayward SPX3020E is a seal plate used on compatible 2-1/2 HP and 3 HP pump models. It mounts between the motor and the pump housing and supports the shaft seal. This component separates the wet end from the motor.

Why This Part Matters
A damaged seal plate can cause recurring shaft seal leaks. Water intrusion at this point may damage the motor and lead to expensive repairs. Replacing a cracked or warped plate restores proper sealing and alignment.

Key Features and Specifications

• Manufacturer part number SPX3020E
• Seal plate for 2-1/2 HP and 3 HP applications
• Supports shaft seal installation
• Separates wet end from motor
• For compatible Hayward pump models

Installation and Fitment Guidance
Replace during shaft seal service if cracking is present. Inspect mating surfaces before reassembly. Confirm by manufacturer part number before ordering.

About the Hayward Brand
Hayward produces pumps, filters, heaters, automation systems, and cleaners that integrate across residential pool systems. Proper separation between wet and dry components is critical for equipment longevity. Their pump platforms are widely used for dependable circulation. Genuine Hayward components maintain system integrity.

Common Service Context
Technicians replace this plate during leak repairs or after freeze damage. It is commonly inspected whenever the motor is removed.
