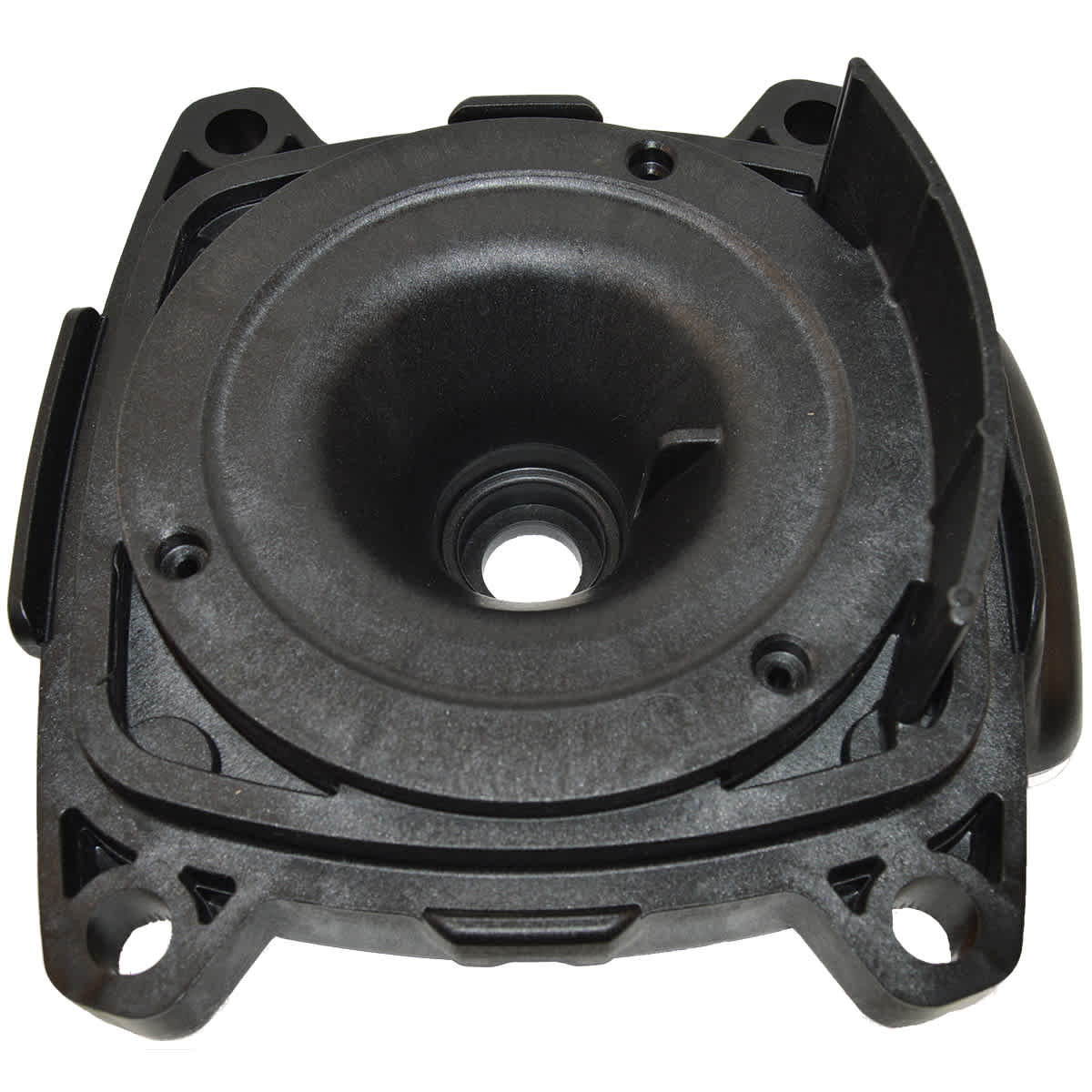

Hayward SPX2300E Seal Plate

What This Part Is Used For
The Hayward SPX2300E is a seal plate used in compatible MaxFlo pump wet ends. It mounts between the motor and pump housing and supports the shaft seal. This component separates the water chamber from the motor.

Why This Part Matters
If the seal plate cracks or warps, water can leak into the motor area. Repeated shaft seal failures are often traced to a damaged seal plate. Replacing it restores proper alignment and protects the motor.

Key Features and Specifications

• Manufacturer part number SPX2300E
• Seal plate for MaxFlo pump models
• Supports shaft seal assembly
• Mounts between motor and housing
• Wet end service component

Installation and Fitment Guidance
Inspect the shaft seal and mating surfaces during installation. Ensure proper alignment before reassembly. Confirm by manufacturer part number before ordering.

About the Hayward Brand
Hayward produces pumps, filters, heaters, automation systems, cleaners, and chlorination solutions for residential pools. Their MaxFlo series is built for energy efficiency and service access. Maintaining proper wet end alignment protects motor longevity. Genuine Hayward components help ensure correct internal fit.

Common Service Context
Seal plates are replaced during wet end rebuilds or after freeze damage. Techs often inspect this part when addressing persistent seal leaks.
