Hayward SPX1611E5 Seal Plate

What This Part Is Used For

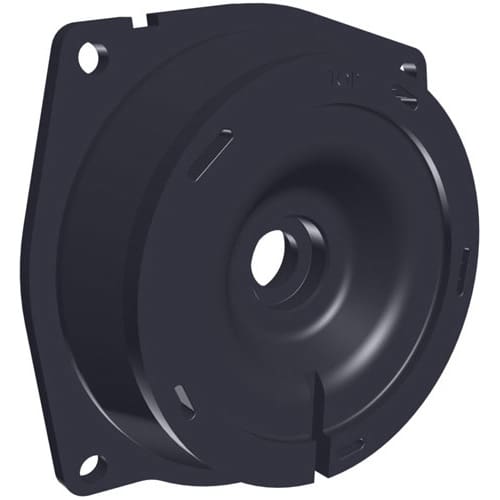

The Hayward SPX1611E5 is a seal plate used between the pump motor and wet end housing. It supports the shaft seal assembly and provides the mounting surface for the motor. This component is part of the pump’s internal structural assembly.

Why This Part Matters
A cracked or warped seal plate can cause persistent shaft seal leaks. Water intrusion at this joint can damage the motor and lead to premature failure. Replacing a damaged seal plate restores proper alignment and sealing integrity.

Key Features and Specifications

• Manufacturer part number SPX1611E5
• Seal plate for compatible Hayward pumps
• Supports shaft seal assembly
• Mounting surface between motor and housing
• Internal structural component of wet end

Installation and Fitment Guidance
Inspect shaft seal and housing gasket when replacing the seal plate. Ensure alignment between motor and housing before tightening bolts. Confirm by manufacturer part number before ordering.

About the Hayward Brand
Hayward manufactures pumps, filters, heaters, automation, cleaners, chlorination systems, and replacement parts for residential pools. Their pump designs allow service of internal components without full system replacement. Maintaining correct alignment between motor and wet end protects circulation performance. Genuine Hayward plates ensure compatibility with existing assemblies.

Common Service Context
Seal plates are often replaced during major leak repairs or after freeze damage. Techs typically identify failure when water is present between the motor and wet end.
