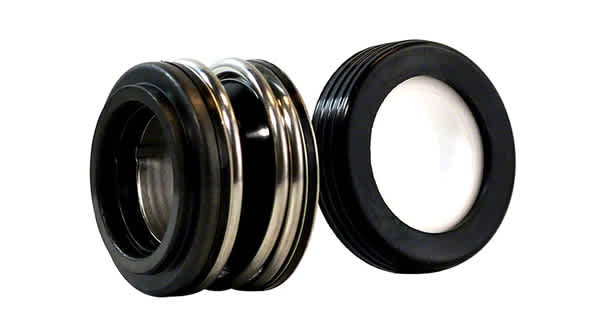

Hayward SPX1600Z2 Seal Assembly

What This Part Is Used For
The Hayward SPX1600Z2 is a seal assembly used in compatible Hayward pump wet ends. It installs between the motor shaft and seal plate to prevent water from entering the motor. This component is part of the pump’s primary water barrier.

Why This Part Matters
A worn shaft seal is one of the most common causes of pump leaks. If water reaches the motor bearings, it can lead to premature motor failure. Replacing the seal assembly restores proper sealing and protects the motor.

Key Features and Specifications

• Manufacturer part number SPX1600Z2
• Pump shaft seal assembly
• Installs between motor and seal plate
• Prevents water intrusion into motor
• For compatible Hayward pump models

Installation and Fitment Guidance
Always replace the seal when installing a new motor or impeller. Avoid touching sealing surfaces during installation. Confirm by manufacturer part number before ordering.

About the Hayward Brand
Hayward produces pumps, filters, heaters, automation controls, cleaners, chlorination systems, and service parts for residential pools. Their pumps are built so common wear components like seals can be replaced without full system replacement. Proper sealing protects circulation performance and motor longevity. Genuine Hayward seals ensure compatibility with matched wet ends.

Common Service Context
Seal assemblies are routinely replaced during motor swaps or when water is visible under the pump. Techs also change them during preventative maintenance rebuilds.
