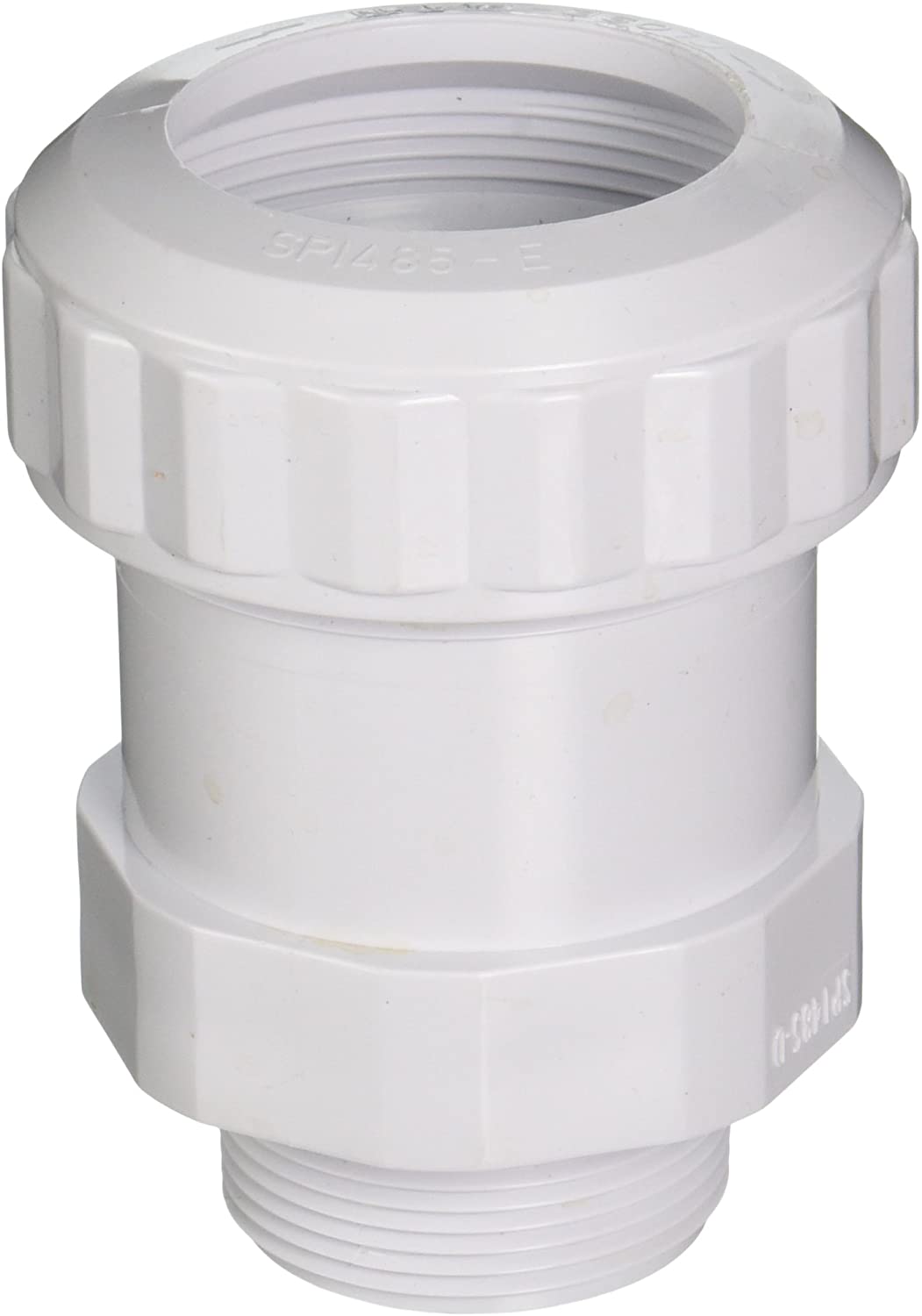

Hayward SPX1485DA Compression Fitting Assembly

What This Part Is Used For
The Hayward SPX1485DA is a compression fitting assembly used on compatible Hayward equipment connections. It creates a sealed, serviceable transition at the equipment pad without permanent glue joints. This type of assembly is commonly used where parts need to be removed for maintenance.

Why This Part Matters
If a compression fitting cracks, strips, or won’t seal, you end up with persistent drips or suction-side air leaks. That can cause pump priming problems and unstable system pressure. Replacing the full assembly restores a proper seal and makes future service easier.

Key Features and Specifications

• Manufacturer part number SPX1485DA
• Compression fitting assembly
• Serviceable connection component for compatible Hayward equipment
• Helps maintain leak-free plumbing joints
• Used on equipment pad connections where disassembly is needed

Installation and Fitment Guidance
Inspect sealing surfaces and replace any associated gaskets or O-rings at the same time if worn. Tighten evenly and do not overtighten, which can distort sealing parts. Confirm by manufacturer part number before ordering.

About the Hayward Brand
Hayward’s system approach covers pumps, filters, heaters, automation, cleaners, chlorination, and the service parts that keep everything integrated. Their equipment pad connections are built to be maintained, not thrown away. Proper fittings help keep circulation stable so filters, heaters, and chlorination systems can operate consistently. Matching OEM parts is the safest way to maintain correct fit across connected components.

Common Service Context
Techs usually replace compression fittings after recurring leaks at a union-style connection. It also comes up during replumbs, filter swaps, and winter damage repairs.
