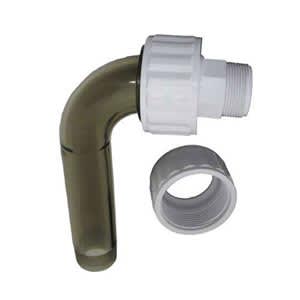

Hayward SPX1485BPAK Union Elbow Assembly Kit

What This Part Is Used For
The Hayward SPX1485BPAK is a union elbow assembly kit used on compatible Hayward sand filter or equipment plumbing connections. It provides a 90-degree turn while keeping the connection serviceable for future maintenance. This type of elbow is commonly found right at the filter or equipment pad.

Why This Part Matters
Cracked elbows and worn union sealing surfaces are a common source of slow leaks. On the suction side, a bad union can also pull air and cause priming issues. Replacing the full union elbow kit restores a solid seal and keeps the pad service-friendly.

Key Features and Specifications

• Manufacturer part number SPX1485BPAK
• Union elbow assembly kit
• Provides a serviceable 90-degree connection
• Used on compatible Hayward equipment pad plumbing
• Helps prevent leaks at union-style joints

Installation and Fitment Guidance
Inspect any related gaskets or O-rings and replace them if worn. Tighten union connections evenly and avoid over-tightening which can crack fittings. Confirm by manufacturer part number before ordering.

About the Hayward Brand
Hayward builds complete residential pool systems, from pumps and filters to heaters, automation, cleaners, and chlorination. Their pad components are meant to be serviced, and union-style fittings make that possible. Keeping these connections sealed helps stabilize flow and pressure for the rest of the equipment. Using correct Hayward parts helps maintain proper fit across interconnected components.

Common Service Context
Union elbows are often replaced after freeze damage, cracking, or persistent drips that won’t stop with gasket replacement alone. Techs commonly encounter them during sand filter service, plumbing upgrades, and equipment swaps.
