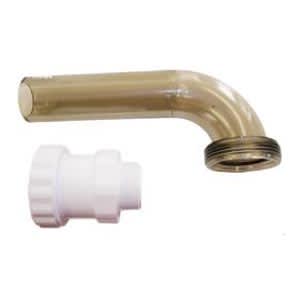

Hayward SPX1485B3 Union Elbow - For S200T

What This Part Is Used For
The Hayward SPX1485B3 is a union elbow used on the Hayward S200T sand filter connection. It makes a 90-degree turn at the filter while allowing quick disassembly for service. This fitting is typically found right on the filter outlet or inlet at the equipment pad.

Why This Part Matters
A damaged union elbow is a common leak point that can drip constantly under pressure. On suction-side plumbing, a poor seal can also pull air and cause a pump to lose prime. Replacing the correct S200T union elbow restores a tight, serviceable connection.

Key Features and Specifications

• Manufacturer part number SPX1485B3
• Union elbow
• For Hayward S200T sand filter
• Serviceable 90-degree equipment pad connection
• Helps prevent leaks and air intrusion

Installation and Fitment Guidance
Check the sealing gasket and replace it if worn or flattened. Hand tighten and align plumbing so the elbow is not under stress. Confirm by manufacturer part number before ordering.

About the Hayward Brand
Hayward builds residential pool systems including pumps, filters, heaters, automation, cleaners, chlorination, and the parts needed to keep them running season after season. Their sand filters use union connections so service work stays clean and straightforward. A properly sealed pad connection helps maintain stable flow and filtration pressure. Using OEM parts helps avoid thread mismatch and sealing headaches.

Common Service Context
Union elbows are often replaced during sand filter cleanings, tank service, or after freeze damage cracks the fitting. Techs usually spot the issue when there’s water staining or a drip right at the filter union.
