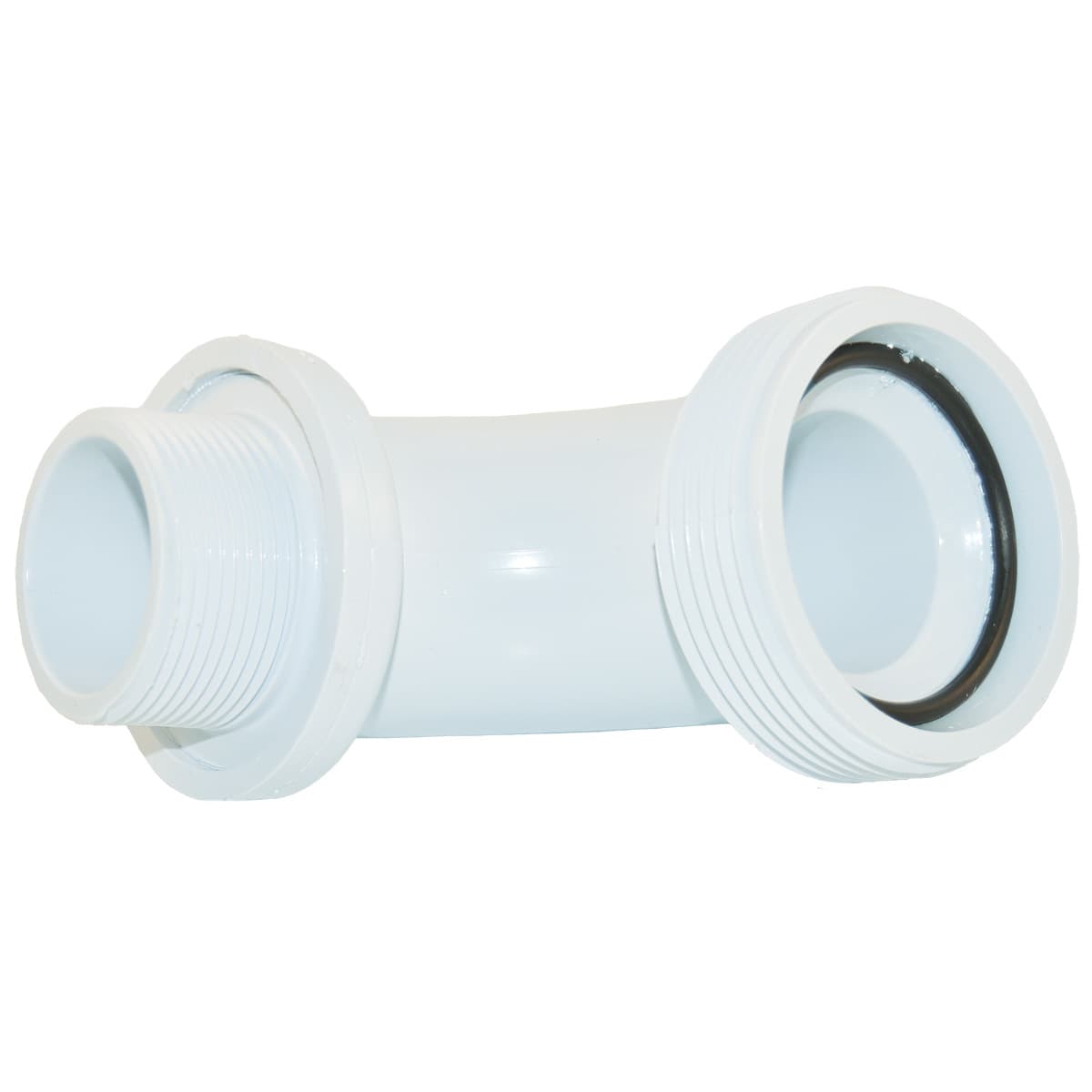

Hayward SPX1485B Union Elbow

What This Part Is Used For
The Hayward SPX1485B is a union elbow used on compatible Hayward equipment connections. It provides a 90-degree turn while keeping the joint serviceable for maintenance. This part is typically installed at the equipment pad near a filter or other connected component.

Why This Part Matters
If a union elbow is cracked or the sealing surface is damaged, it will leak and can’t be reliably tightened into submission. Leaks at the pad waste water and can cause air intrusion depending on where the elbow sits in the plumbing run. Replacing the correct union elbow restores a solid seal and keeps future service easy.

Key Features and Specifications

• Manufacturer part number SPX1485B
• Union elbow fitting
• Serviceable 90-degree connection
• Used on compatible Hayward equipment pad plumbing
• Helps maintain leak-free circulation connections

Installation and Fitment Guidance
Inspect and replace any associated gaskets or O-rings if needed. Align plumbing to avoid side load on the union connection. Confirm by manufacturer part number before ordering.

About the Hayward Brand
Hayward supports complete pool equipment systems with pumps, filters, heaters, automation, cleaners, chlorination, and service parts. Their union-style connections are built for maintainability at the pad. Keeping fittings sealed helps protect pump performance and maintain stable filter pressure. OEM Hayward parts are the safest match when multiple components share the same plumbing layout.

Common Service Context
Techs replace union elbows when a pad connection keeps leaking after gasket replacement or when a fitting cracks from winter freeze. It also comes up during equipment upgrades and replumbs where old unions won’t reseal cleanly.
