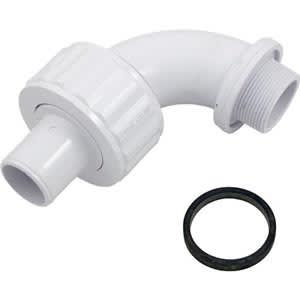

Hayward SPX14853 Sweep Union Elbow

What This Part Is Used For
The Hayward SPX14853 Sweep Union Elbow is a replacement union elbow used in select Hayward pool plumbing assemblies. It connects plumbing lines while allowing for directional change and serviceable union separation within the system.

Why This Part Matters
When a union elbow cracks or leaks, you lose pressure and risk air entering the system. That can lead to priming issues, reduced circulation, and water damage around the equipment pad. Replacing the elbow restores a secure connection and keeps service access intact.

Key Features and Specifications

• Manufacturer part number SPX14853
• Replacement sweep-style union elbow
• Designed for compatible Hayward plumbing assemblies
• Allows directional change while maintaining union serviceability
• Used in pool circulation and return line configurations

Installation and Fitment Guidance
Inspect the mating union surfaces and O-ring before installation to ensure a proper seal. Hand tighten and avoid over-torquing to prevent cracking. Confirm by manufacturer part number before ordering.

About the Hayward Brand
Hayward manufactures a full line of residential pool equipment including pumps, filters, heaters, automation systems, salt chlorination, and cleaners. Their components are engineered to integrate across complete pool systems. Service parts like unions and connectors are built to maintain compatibility within their equipment ecosystem. This allows technicians to repair without modifying original plumbing layouts.

Common Service Context
Technicians typically encounter this elbow during pump replacements, filter swaps, or when addressing suction side air leaks. It is often identified when water is dripping at a union connection or when the elbow shows visible stress cracking.
