Hayward
Hayward Pro Series Sand Filter, 24", Side Mount, 1-1/2" Valve | S244S
Hayward Pro Series Sand Filter, 24", Side Mount, 1-1/2" Valve | S244S

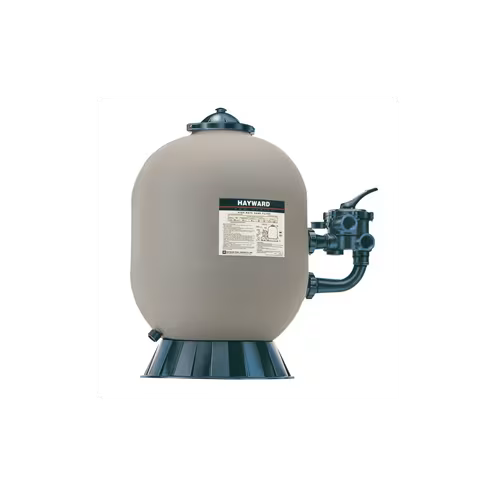

Hayward S244S ProSeries 24" Side-Mount Sand Filter with 1-1/2" VariFlo Valve
The Hayward S244S ProSeries is a durable, high-rate sand filter built for dependable water clarity on residential in-ground pools. Its 24-inch corrosion-proof polymeric tank, side-mounted VariFlo multiport valve, and self-cleaning lateral system work together to deliver efficient filtration, balanced backwashing, and straightforward service access.
Clearer Water, Lower Maintenance
High-rate sand filtration captures dirt and debris while providing a simple, proven maintenance routine for everyday pool ownership.
Service-Friendly Side Mount
The side-mounted control valve keeps the top of the tank more accessible for media changes, inspections, and routine equipment-pad service.
Built for In-Ground Pools
Designed for residential in-ground pool systems requiring reliable filtration capacity and a durable all-weather filter tank.
Why Choose the Hayward S244S Sand Filter?
The S244S uses Hayward’s precision-engineered umbrella-fold lateral system to distribute water evenly through the sand bed and support balanced backwashing. The result is efficient water flow, dependable filtration performance, and easier long-term ownership compared with aging or undersized pool filters.
- Corrosion-proof, colorfast polymeric tank built for outdoor equipment pads.
- Self-cleaning lateral underdrain system supports even water distribution.
- Six-position 1-1/2 inch VariFlo control valve included.
- Integral sight glass helps verify when the backwash cycle is complete.
- Large drain opening supports faster winterizing and service.
- Automatic air relief helps purge trapped air during operation.
- Flanged inspection cover provides convenient access to the filter interior.
Hayward S244S Specifications
| Manufacturer Part Number | S244S |
|---|---|
| Product Type | High-Rate Sand Filter |
| Application | Residential In-Ground Pools |
| Tank Diameter | 24 Inches |
| Effective Filtration Area | 3.14 Square Feet |
| Design Flow Rate | 62 GPM |
| Backwash Flow Rate | 62 GPM |
| Maximum Working Pressure | 50 PSI |
| Sand Capacity | 300 Pounds |
| Recommended Media | No. 20 silica filter sand, 0.45 to 0.55 mm grade |
| Valve Included | 1-1/2 Inch Hayward VariFlo Side-Mount Multiport Valve |
| Drain Port Size | 1-1/2 Inches |
| Approximate Product Dimensions | 36" H x 24.5" L x 24.5" W |
| Approximate Product Weight | 53 Pounds |
| Suggested Installation Clearance | 18 Inches Side Clearance and 18 Inches Vertical Clearance |
Installation & Compatibility Guidance
The Hayward S244S is typically installed on residential in-ground pool systems using a side-mount multiport valve and 1-1/2 inch plumbing. Proper filter sizing depends on pool volume, pump flow rate, plumbing configuration, turnover requirements, and local code requirements.
- Install on a level, stable concrete pad or comparable equipment base.
- Verify that the pump flow rate does not exceed the filter’s 62 GPM design flow rating.
- Use the specified amount and grade of filter sand. Do not overfill the tank.
- Ensure waste-line routing and backwash discharge comply with local requirements.
- Always turn the pump off before changing valve positions.
Professional installation is recommended when replacing an existing filter with different plumbing orientation, elevation, valve configuration, or equipment-pad footprint.
Frequently Asked Questions
Does the Hayward S244S include the multiport valve?
How much sand does the Hayward S244S require?
What size pool is the S244S designed for?
What is the advantage of a side-mount sand filter?
When should I backwash the filter?
