Hayward S144T ProSeries Sand Filter - 14 inch Top Mount With 1-1/2 inch Valve
Hayward S144T ProSeries Sand Filter - 14 inch Top Mount With 1-1/2 inch Valve

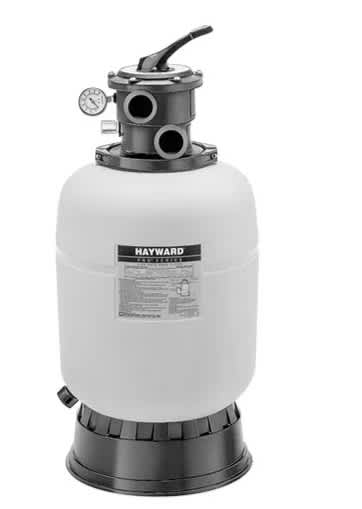

Hayward S144T ProSeries Sand Filter, 14 Inch Top Mount with 1-1/2 Inch Valve
The Hayward S144T was a compact ProSeries top-mount sand filter used for above-ground and small pool filtration applications. This model has been discontinued and is no longer a reliable current-production option.
Recommended Replacement: Hayward W3S166T ProSeries 16 Inch Top Mount Sand Filter with Valve
The recommended current replacement option is the Hayward W3S166T. It keeps you in the Hayward ProSeries top-mount sand filter family, but moves you to a slightly larger 16-inch filter platform with a multiport valve included.
The W3S166T is a better forward-looking choice because it is a newer, current-style ProSeries filter option with stronger long-term parts availability than the discontinued S144T.
View Hayward W3S166T ReplacementWhat This Filter Was Used For
The Hayward S144T ProSeries sand filter was designed to provide mechanical filtration using pool filter sand. Water flows through the top-mounted valve, into the sand bed, and back out to the pool after dirt and debris are trapped inside the filter tank.
It was commonly used on above-ground pools and smaller pool systems where a compact sand filter was required.
Why This Listing Matters
Many pool owners search for the S144T because they are replacing an older filter with the same model number. Since the S144T is discontinued, the important next step is choosing a compatible modern filter option rather than waiting for a part that may not return to stock.
Product Details
| Specification | Details |
|---|---|
| Manufacturer | Hayward |
| Original Part Number | S144T |
| Product Type | ProSeries top-mount sand filter |
| Tank Size | 14 inch |
| Valve Style | Top mount, 1-1/2 inch valve |
| Filtration Type | Sand filtration |
| Status | Discontinued |
| Recommended Replacement | Hayward W3S166T ProSeries 16 Inch Top Mount Sand Filter with Valve |
Overview
The Hayward S144T ProSeries Sand Filter was a 14-inch top-mount sand filter built for dependable residential pool filtration. It used a sand bed to capture debris and helped maintain clearer pool water with routine backwashing and maintenance.
Because the S144T has been discontinued, this listing is maintained for reference, fitment research, and replacement guidance.
Replacement Path
The best replacement path for most customers is to move to the Hayward W3S166T ProSeries 16-inch top-mount sand filter with valve. It is slightly larger than the S144T and provides a more current replacement option within the same Hayward ProSeries filter family.
Compatibility and Sizing Notes
Before replacing an S144T, confirm your pool size, pump flow rate, plumbing size, equipment pad space, and current valve orientation. Moving from a 14-inch filter to a 16-inch filter is usually a straightforward upgrade, but the plumbing layout should always be checked before installation.
- Check plumbing: confirm pipe size and valve position before ordering.
- Check pad space: the replacement filter will be larger than the S144T.
- Check pump size: make sure the filter is properly matched to your pool pump and pool size.
- Use proper sand: follow the replacement filter manual for the correct sand type and quantity.
Installation Guidance
Install the replacement filter on a firm, level equipment pad. Shut off power to the pump before disconnecting any plumbing. Follow the Hayward installation manual for valve assembly, sand loading, backwash startup, and pressure testing.
After installation, backwash and rinse the filter before returning the system to normal filtration. Always monitor the pressure gauge and check for leaks during initial startup.
Discontinued Item Notes
The S144T is discontinued, so availability is limited and may not return. If your existing S144T tank, valve, laterals, standpipe, or internal components are failing, a complete filter replacement may be more practical than trying to rebuild an older discontinued unit.
The W3S166T is the suggested replacement option because it keeps the system in the Hayward ProSeries sand filter lineup while moving to a current 16-inch platform.
Shipping and Returns
This product is discontinued and may not be available for fulfillment. Please review the recommended replacement option before placing an order.
Pool filters and equipment items should be inspected before installation. Installed, plumbed, used, or filled filters may be subject to return restrictions.
Before You Order
If you are replacing a Hayward S144T, confirm that your equipment pad and plumbing can accommodate the recommended Hayward W3S166T replacement. The W3S166T is a slightly larger 16-inch ProSeries sand filter and is the better current option when the original 14-inch S144T is no longer available.
Replacement link: Hayward W3S166T ProSeries 16 Inch Top Mount Sand Filter with Valve
