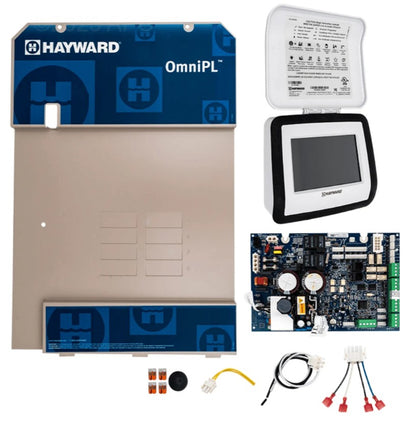

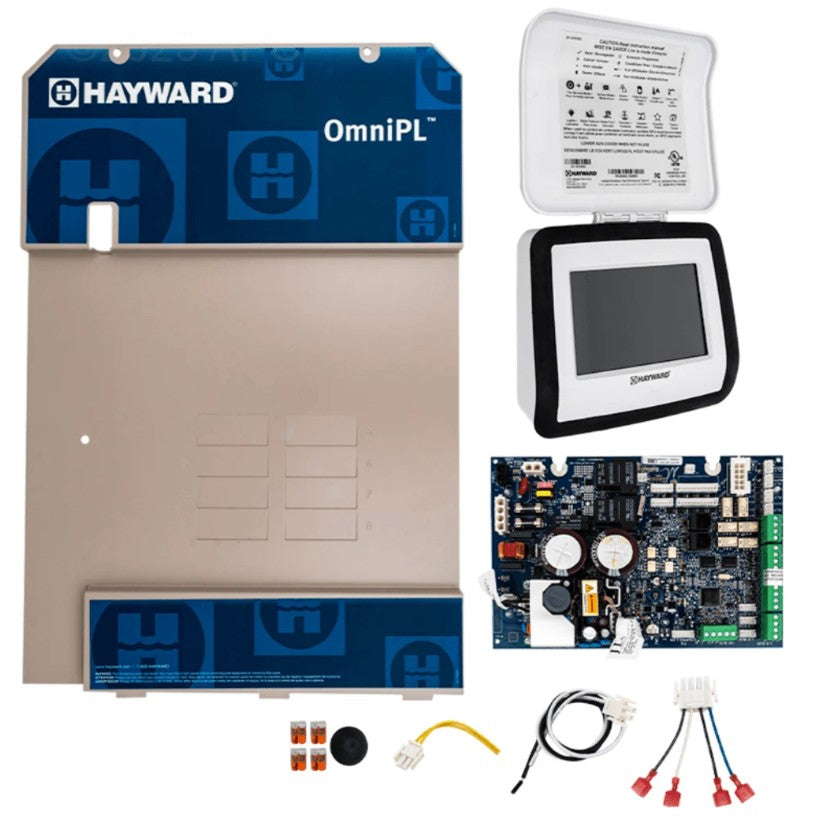

Hayward OmniPL Retrofit Kit for AquaLogic and ProLogic | HLPROUPG

• Upgrades compatible Hayward ProLogic, AquaLogic, AquaPlus and E-Command automation systems.

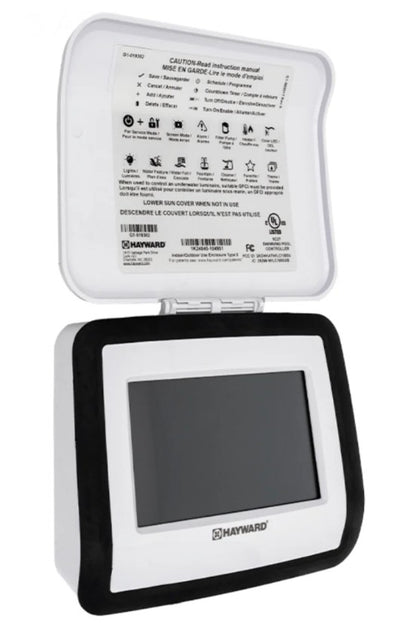

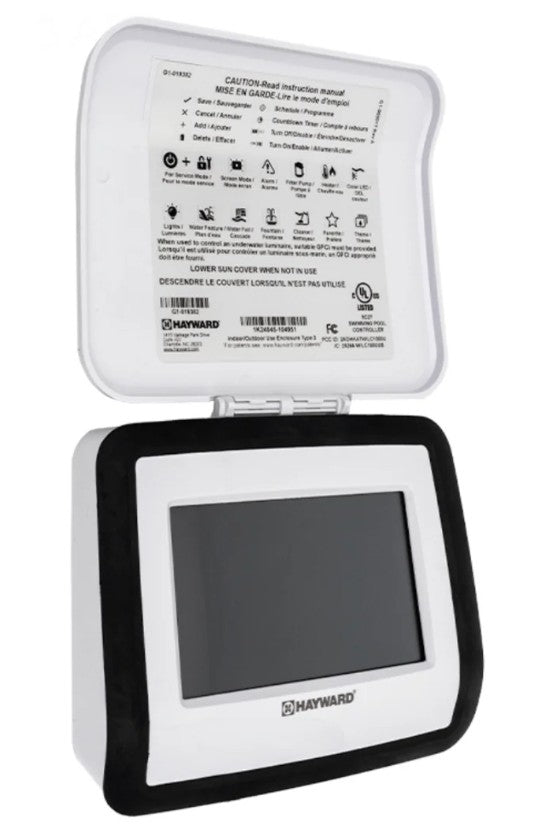

• External relocatable touchscreen display with a 15-foot cord.
• Provides full control of up to 8 compatible Hayward variable-speed pumps without using standard relays.
• Can control supported competitive variable-speed pumps when used with the appropriate Hayward HLPMPCONV converter.
• Includes 4 relays with expansion options for systems requiring additional equipment control.
• Supports compatible Hayward ColorLogic LED lighting and OmniDirect functionality.
• Ready for compatible Hayward salt chlorination when an appropriate salt cell is added.
• Compatible with current Omni remote-control options including supported wireless, wall-mount and spa-side controls.
• Provides remote access through the Hayward OmniLogic app.
• Supports compatible voice-control integrations for convenient smart-home operation.

HLPROUPG is intended to retrofit a wide range of existing Hayward automation installations, including compatible systems from the following families:

• Hayward ProLogic
• Hayward AquaLogic
• Hayward AquaPlus
• Hayward E-Command

Compatibility is dependent on the exact existing controller, equipment configuration and accessories. The model number of the existing automation panel should be verified before ordering.

Supported current Omni remote options include compatible Hayward HLWRELESS, HLWALLMOUNT and HLSPASIDE controls.

The OmniPL retrofit platform includes four high-voltage relays and is designed for modular expansion.

• 4 relays: Standard included configuration.
• 6 relays: Expandable using two compatible Hayward HLRELAY components.
• 8 relays: Additional expansion is available using compatible Hayward Omni relay hardware.

Because compatible Hayward variable-speed pumps can communicate directly with the automation system, pump control does not necessarily consume the standard high-voltage relay positions.

OmniPL provides much more than basic pump scheduling. Depending on the equipment connected to the system, the platform can integrate several major backyard functions into a single control interface.

• ColorLogic Lighting: Supports compatible Hayward ColorLogic LED lighting.
• OmniDirect Mode: With qualifying ColorLogic lighting, OmniDirect can provide expanded color selections, additional light shows, dimming and show-speed control.
• Salt Chlorination: The retrofit is salt-ready when paired with an appropriate compatible Hayward salt cell.
• Mobile Access: Use the OmniLogic app to monitor equipment, change settings and manage schedules remotely.
• Voice Control: Compatible system configurations can integrate with supported voice-control platforms.

The HLPROUPG is a system-level automation retrofit, not an individual replacement relay, display or circuit board intended to be universally installed in every Hayward control enclosure.

Before ordering, identify the model and configuration of the existing automation system and make note of connected pumps, heaters, valve actuators, lighting, chlorination equipment, remotes and other controlled devices.

HLPROUPG is Hayward's OmniPL Retrofit Kit. It upgrades compatible legacy Hayward pool automation systems to the newer Omni smart-control platform.

Yes. OmniPL is specifically designed to upgrade many existing ProLogic installations, although the exact controller model and equipment configuration should be confirmed before purchase.

Hayward lists compatible AquaLogic systems among the legacy automation platforms supported by the OmniPL Retrofit Kit. Exact system compatibility should still be verified by model.

Yes, compatible AquaPlus installations are included in Hayward's intended OmniPL retrofit applications.

The retrofit system is equipped with four relays and can be expanded to six or eight relays using compatible Hayward expansion hardware.

Hayward states that OmniPL can control up to eight compatible Hayward variable-speed pumps without using standard relay positions.

Certain competitive variable-speed pumps can be integrated using the appropriate Hayward HLPMPCONV OmniLogic VSP Converter. Compatibility should be confirmed for the specific pump model.

The upgraded Omni platform supports remote monitoring, scheduling and equipment control through Hayward's OmniLogic app when the system is properly connected and configured.

Not necessarily. Hayward states that legacy AquaLogic and ProLogic wireless, wall-mount, desktop and spa-side remote controls are not compatible with the OmniPL Retrofit Kit. Compatible Omni-series controls may be required.

Yes. The system is designed to be salt-ready when paired with a compatible Hayward salt cell and appropriate system configuration.

It is a retrofit kit rather than a completely new standalone automation installation. Its purpose is to bring Omni functionality to compatible existing Hayward automation hardware while replacing key control components.
