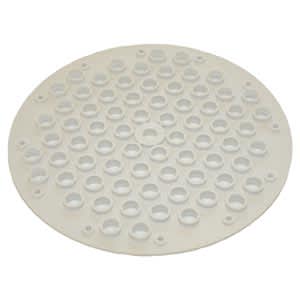

Hayward ECX1004A Tube Sheet Top - EC40/EC45/EC50

What This Part Is Used For
The Hayward ECX1004A Tube Sheet Top is the upper plate for select Perflex EC40, EC45, and EC50 filters. It supports and aligns internal filter elements.

Why This Part Matters
A cracked or warped tube sheet can cause poor element alignment and uneven filtration. Replacing it restores structural support and proper flow. It is essential for maintaining consistent filter performance.

Key Features and Specifications

• Genuine Hayward replacement part
• Manufacturer part number: ECX1004A
• Fits EC40, EC45, and EC50 models
• Top tube sheet component
• Supports internal filter elements

Installation and Fitment Guidance
Install during a full filter teardown to ensure proper seating of elements. Inspect all related gaskets and hardware at the same time. Confirm by manufacturer part number before ordering.

About the Hayward Brand
Hayward designs Perflex systems for service-friendly maintenance. Replacement structural components are built to match factory tolerances. Using OEM parts helps maintain proper alignment and filtration performance. Hayward remains a trusted name in residential filtration.

Common Service Context
Often replaced when rebuilding older Perflex filters or after internal component failure. Also installed when structural cracks are discovered during cleaning.
