Firegear Linear Flat H-Burner System, 30" x 14", TPSI Ignition, Propane | LOF-3014FHTPSI-P
Firegear Linear Flat H-Burner System, 30" x 14", TPSI Ignition, Propane | LOF-3014FHTPSI-P
Firegear Linear Flat H-Burner System, 30" x 14", TPSI Ignition, Propane | LOF-3014FHTPSI-P

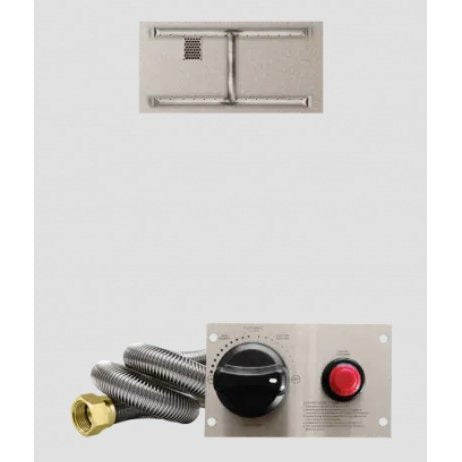

The Firegear LOF-3014FHTPSI-P is a 30" x 14" linear flat burner system designed for custom outdoor propane fire features. It combines a stainless steel flat burner pan, a 27" x 10" H-style burner and Firegear's Thermocouple Piloted Safety Ignition system for high-output flame performance with integrated flame-loss protection.
Rated at 100,000 BTU, this propane burner system is engineered for properly constructed and ventilated outdoor fire pit enclosures where a broad linear flame presentation is desired.
The TPSI ignition system uses a standing pilot, thermocouple and safety valve to monitor flame presence. If the pilot flame is lost, the safety system shuts off the gas supply rather than allowing uncontrolled gas flow.
Firegear TPSI Advantages
- Thermocouple Piloted Safety Ignition system
- Flame-sensing safety valve monitors pilot operation
- Automatic gas shutoff if the pilot flame is lost
- Battery-powered spark ignition for pilot lighting
- Manual fire control without complex electronic automation
- Designed to support full burner BTU performance
Important Product Identification
- Firegear part number LOF-3014FHTPSI-P
- 30" x 14" linear flat burner pan
- 27" x 10" H-style burner
- 100,000 BTU rated output
- Propane / LP configuration
- Outdoor fire-feature application
Product Features
- Linear flat burner design: The 30" x 14" flat pan provides a clean installation platform for contemporary rectangular and linear outdoor fire features.
- H-style flame pattern: The 27" x 10" H-burner distributes flame across multiple burner legs to create a broader flame presentation across the fire media.
- 100,000 BTU output: Provides substantial heat and flame presence when supplied with properly sized propane piping, regulator capacity and inlet pressure.
- TPSI safety ignition: Firegear's Thermocouple Piloted Safety Ignition system monitors the pilot flame and shuts off gas flow if flame presence is lost.
- Battery spark ignition: The pilot can be ignited using the integrated spark system rather than requiring an external flame source.
- Outdoor-rated application: Intended for properly designed outdoor fire pit and fire-feature installations with required ventilation, drainage and clearances.
- Propane-specific configuration: This -P model is factory configured for LP gas and should be matched to a properly designed propane fuel system.
- Serviceable burner system: The flat-pan configuration allows the complete burner assembly to remain accessible for inspection and maintenance when the enclosure is built correctly.
Product Specifications
| Manufacturer | Firegear Outdoors |
|---|---|
| Manufacturer Part Number | LOF-3014FHTPSI-P |
| Product Type | Linear flat outdoor fire pit burner system |
| Fuel Type | Propane / LP |
| Ignition System | TPSI - Thermocouple Piloted Safety Ignition |
| Rated Output | 100,000 BTU |
| Pan Style | Linear flat pan |
| Outside Pan Dimensions | 30" x 14" |
| Burner Style | H-Burner |
| Burner Dimensions | 27" x 10" |
| Maximum Opening | Approximately 28" x 12" |
| Fuel Conversion | Factory fuel-specific configuration; field conversion is not recommended |
| Installation Location | Outdoor use only |
| Application | Custom outdoor fire pits and fire features |
| Fire Media | Approved fire glass or lava rock, sold separately unless otherwise stated |
Confirm the Fire Pit Opening, Fuel Supply and Ventilation
The LOF-3014FHTPSI-P is intended to become part of a complete outdoor gas fire feature. The surrounding enclosure must be designed around the burner assembly and cannot be treated as a decorative box with a burner simply placed inside.
- Verify the available opening and burner-pan dimensions
- Confirm the installation is supplied with propane / LP
- Verify gas-line sizing for a 100,000 BTU appliance
- Confirm regulator capacity and inlet gas pressure
- Provide proper drainage beneath the burner pan
- Maintain manufacturer-required combustible clearances
- Keep the burner and controls accessible for future service
- Provide required cross ventilation in the enclosure
What This Listing Includes
- Firegear 30" x 14" linear flat burner pan
- 27" x 10" H-style gas burner
- TPSI Thermocouple Piloted Safety Ignition components
- Propane / LP burner configuration
- Firegear part number LOF-3014FHTPSI-P
Common Items Not Included
- Decorative fire glass or lava rock unless specifically stated
- Propane tank or bulk LP supply
- External gas regulator or complete gas piping system
- Fire pit enclosure or finished surround
- Weather cover
- Site-specific plumbing or installation materials
Professional Installation Recommended
Outdoor gas fire features require correct gas pressure, pipe sizing, ventilation, clearances, drainage and leak testing. Improper installation can cause fire, explosion, carbon monoxide exposure or property damage.
- Installation should be completed by a qualified gas professional
- Confirm the appliance is connected only to propane / LP
- Leak-test all gas fittings before initial operation
- Maintain required enclosure ventilation at all times
- Do not install the burner in an enclosed indoor location
- Do not modify the burner ports or certified burner assembly
- Keep combustible materials outside required clearance zones
- Never leave an operating fire feature unattended
Frequently Asked Questions
What is Firegear part number LOF-3014FHTPSI-P?
LOF-3014FHTPSI-P is a Firegear linear flat outdoor burner system featuring a 30" x 14" pan, 27" x 10" H-burner, TPSI ignition and factory propane configuration.
How many BTUs is the LOF-3014FHTPSI-P?
This model is rated at 100,000 BTU when connected to a properly sized propane fuel system with the required gas pressure and flow capacity.
What size is the burner pan?
The outside dimensions of the linear flat burner pan are approximately 30 inches by 14 inches.
What size is the actual H-burner?
The H-style burner measures approximately 27 inches by 10 inches.
What does TPSI mean?
TPSI stands for Thermocouple Piloted Safety Ignition. The system uses a pilot flame and thermocouple to confirm flame presence. If the pilot flame is lost, the safety valve shuts off the gas supply.
Is LOF-3014FHTPSI-P propane or natural gas?
The -P suffix identifies this as the propane / LP version. The fuel type should always be verified before installation.
Can I convert this propane burner to natural gas?
This system is manufactured for a specific fuel configuration. It should not be treated as a field-convertible burner system. Use the correct Firegear natural gas model when the installation is supplied by natural gas.
Does the burner include fire glass?
Decorative fire media is generally supplied separately unless specifically stated otherwise in the listing. Use only fire media approved for high-temperature gas fire features.
How much ventilation does the enclosure require?
Firegear requires at least 18 square inches of cross ventilation on each of two opposite sides of the enclosure. These openings must remain unobstructed during operation.
Can this burner be installed indoors?
No. This Firegear system is designed for outdoor use only in a properly constructed and ventilated fire-feature enclosure.
Can I use river rock around the burner?
Ordinary river rock and other non-rated stone should not be used as fire media because trapped moisture can cause stones to fracture or pop when heated. Use approved fire glass, lava rock or other media specifically intended for gas fire features.
Does the TPSI system require household electricity?
The TPSI system uses manual gas control with a battery-powered spark ignition system rather than requiring a full line-voltage electronic ignition controller.
Who should install this Firegear burner?
Installation should be performed by a qualified gas professional familiar with outdoor fire features, propane supply sizing, ventilation requirements, gas leak testing and applicable local codes.
Need Help Confirming Your Firegear Burner?
Match the required pan size, burner configuration, fuel type, ignition system and available fire pit opening before selecting a replacement or new Firegear burner system.
