AquaStar Pool Products

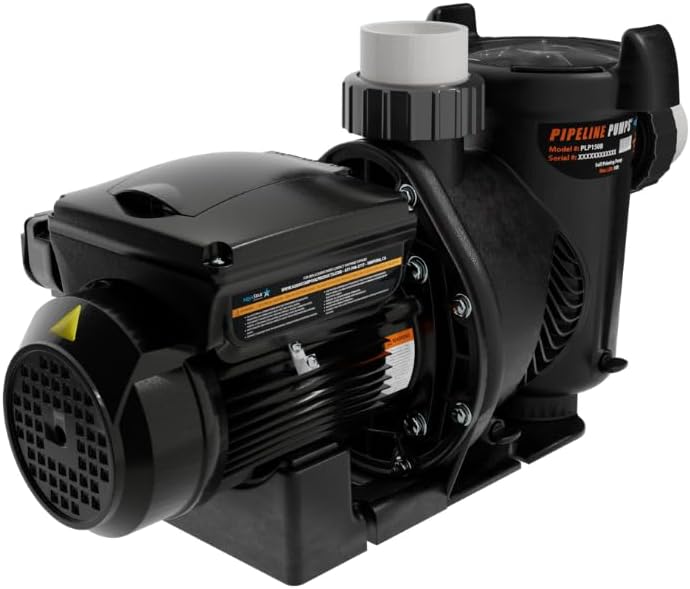

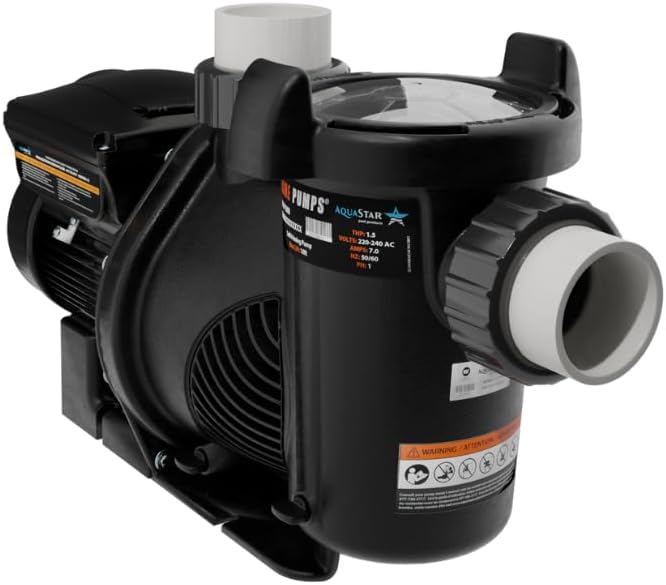

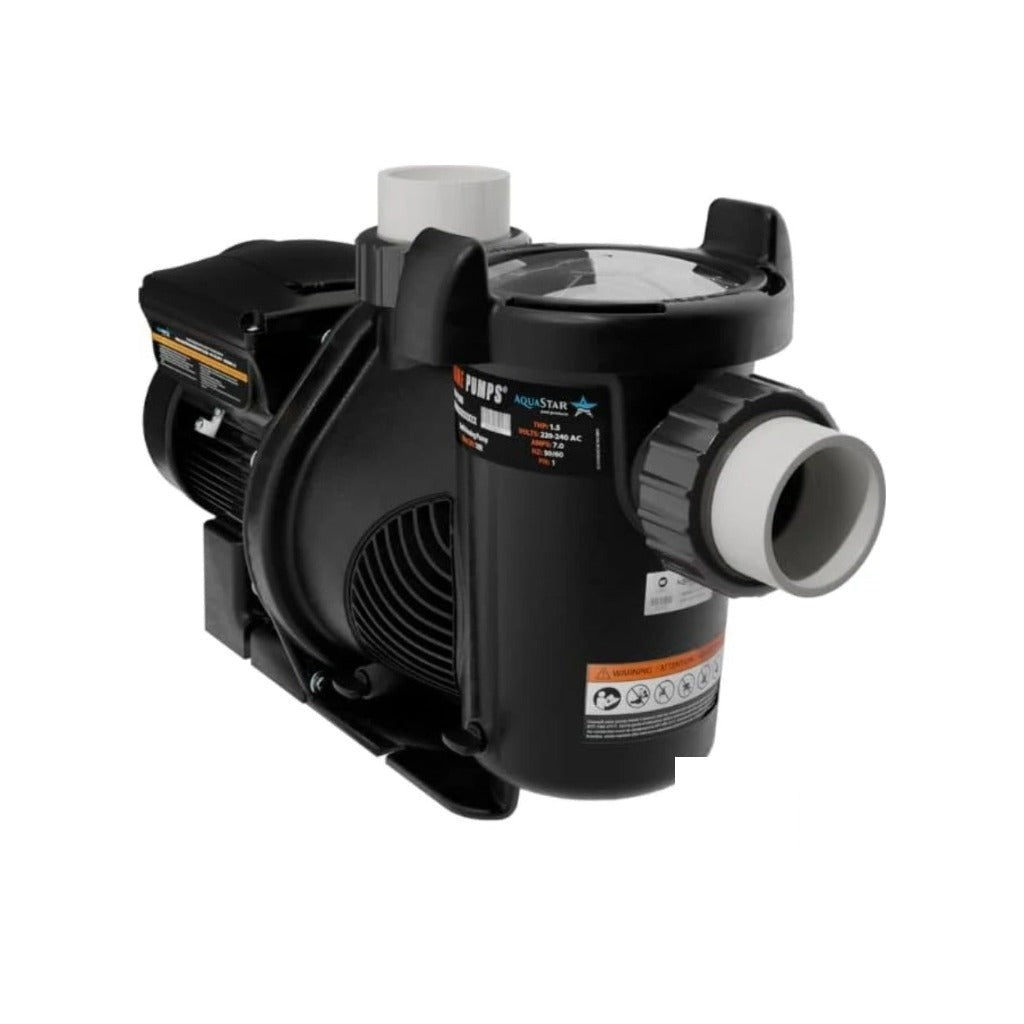

AquaStar PLP150S Variable Speed High-Efficiency 1.5HP Pool Pump
AquaStar PLP150S Variable Speed High-Efficiency 1.5HP Pool Pump
The AquaStar PLP150S Variable Speed High-Efficiency 1.5HP Pool Pump is a smart, energy-efficient pool pump designed for quiet operation, strong water circulation, and modern variable-speed performance. Built as part of AquaStar’s PipeLine pump series, the PLP150S gives pool owners a high-efficiency upgrade from older single-speed or less efficient pool pumps.
With a 1.5 THP permanent magnet motor, programmable speed control, and a hydraulically optimized design, the AquaStar PLP150S helps move pool water more efficiently while giving you better control over daily filtration, heating, cleaning, and circulation schedules.
Why Choose the AquaStar PLP150S Pool Pump?
The PLP150S is built for pool owners who want quieter operation, lower energy use, and dependable daily circulation. Its variable-speed design allows the pump to run at lower RPMs for normal filtration and higher speeds when extra flow is needed for heating, spa mode, water features, or pool cleaning.
Smart Variable Speed Performance
The AquaStar PLP150S uses variable-speed technology so the pump can be programmed to run at different speeds throughout the day. Instead of running at full power all the time, the pump can operate at lower speeds for routine filtration, helping improve efficiency and reduce unnecessary energy consumption.
The PLP150S includes four programmable speeds from 800 to 3400 RPM, making it a strong option for pool systems that need flexible control over water flow, runtime, and equipment performance.
Pool Pro Tip: Variable-speed pumps usually save the most energy when they are programmed correctly. Running longer at a lower RPM is often more efficient than running a pump at high speed for a shorter period of time.
Key Features
- 1.5 THP variable-speed pool pump for efficient pool water circulation
- Smart model in AquaStar’s PipeLine pump series
- Permanent Magnet Motor drive system for high-efficiency operation
- TEFC motor design helps protect the motor and reduce operating noise
- Four programmable speeds from 800 to 3400 RPM
- High-efficiency volute design helps support smooth, efficient water flow
- Noise-reducing vibration dampening rubber insert for quieter operation
- RS485 communication port for compatible automation communication
- 2" or 2.5" socket connection compatibility for flexible installation
- 230VAC single-phase operation
- WEF rating of 7.20 kgal/kWh for high-efficiency performance
What This Pump Does
The pool pump is the heart of your pool circulation system. It pulls water from the pool, pushes it through the filter, and helps move clean, treated water back into the pool. The AquaStar PLP150S is designed to do this more efficiently than a traditional single-speed pump by allowing the motor speed to match the pool’s actual circulation needs.
For everyday filtration, the pump can run at a lower speed to save energy and reduce noise. When higher flow is needed, such as during vacuuming, heating, spa operation, or water feature use, the pump can be programmed to run at a higher RPM.
Product Details
| Brand | AquaStar |
| Part Number | PLP150S |
| Product Type | Variable Speed Pool Pump |
| Series | AquaStar PipeLine Pump |
| Total Horsepower | 1.5 THP |
| Maximum Input Power | 1500W |
| Speed Range | 800 to 3400 RPM |
| Programmable Speeds | 4 Programmable Speeds |
| Voltage | 230VAC, 50/60Hz, Single Phase |
| Amp Rating | 7.0A |
| WEF Rating | 7.20 kgal/kWh |
| Connection Size | 2" Socket or 2.5" Socket |
| Communication | RS485 Communication Port |
| Weight | 48 lbs |
When Should You Upgrade to the AquaStar PLP150S?
The AquaStar PLP150S is a strong choice when replacing an old single-speed pump, upgrading to a more efficient variable-speed pump, or building a pool equipment pad where quiet operation and energy savings matter. It is especially useful for pool owners who want better control over daily filtration schedules and overall system performance.
You may want to consider this pump if your current pump is loud, expensive to run, oversized for everyday filtration, failing mechanically, or unable to provide the flexible speed control needed for modern pool operation.
Frequently Asked Questions
Is the AquaStar PLP150S a variable-speed pump?
Yes. The AquaStar PLP150S is a 1.5 THP variable-speed smart pool pump with four programmable speeds from 800 to 3400 RPM.
What voltage does the AquaStar PLP150S use?
The PLP150S operates on 230VAC, 50/60Hz, single-phase power. Installation should be completed by a qualified pool professional or electrician in accordance with local code.
What size plumbing connections does this pump use?
The AquaStar PLP150S is designed for 2" socket or 2.5" socket connections, giving installers flexibility when replacing an existing pump or setting up a new equipment pad.
Is this pump quiet?
Yes. The PLP150S is designed for quiet operation with a permanent magnet motor, TEFC design, optimized water flow, and a vibration dampening rubber insert to help reduce operating noise.
Can this pump connect to pool automation?
The PLP150S includes an RS485 communication port for compatible automation communication. Automation compatibility may depend on the installed controller and setup.
Will this pump save energy compared to a single-speed pump?
In many pool systems, yes. Variable-speed pumps can reduce energy use by allowing the pump to run at lower speeds for normal filtration instead of operating at full speed all day. Actual savings depend on programming, pool size, plumbing, filter condition, runtime, and local utility costs.
Need Help Confirming Fit?
Not sure if the AquaStar PLP150S is the right replacement pump for your pool? Contact Aqua Terra Backyard with your current pump model, plumbing size, voltage, and a few photos of your equipment pad. We can help confirm whether this AquaStar variable-speed pump is a good fit before you order.
