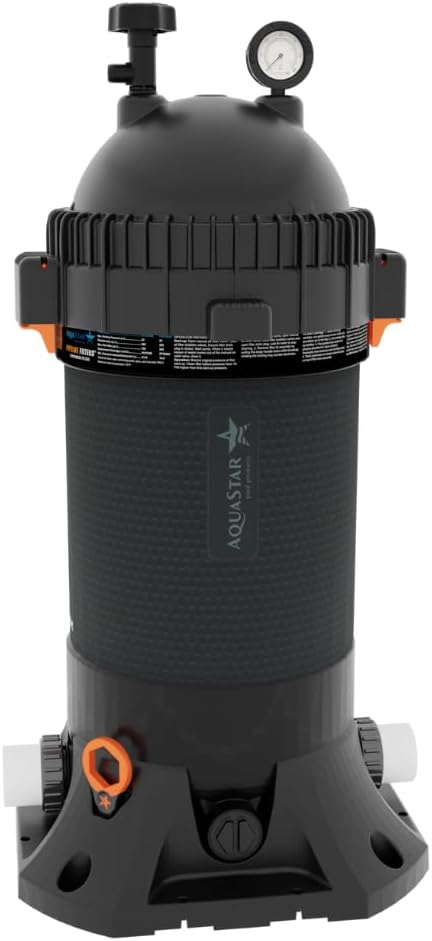

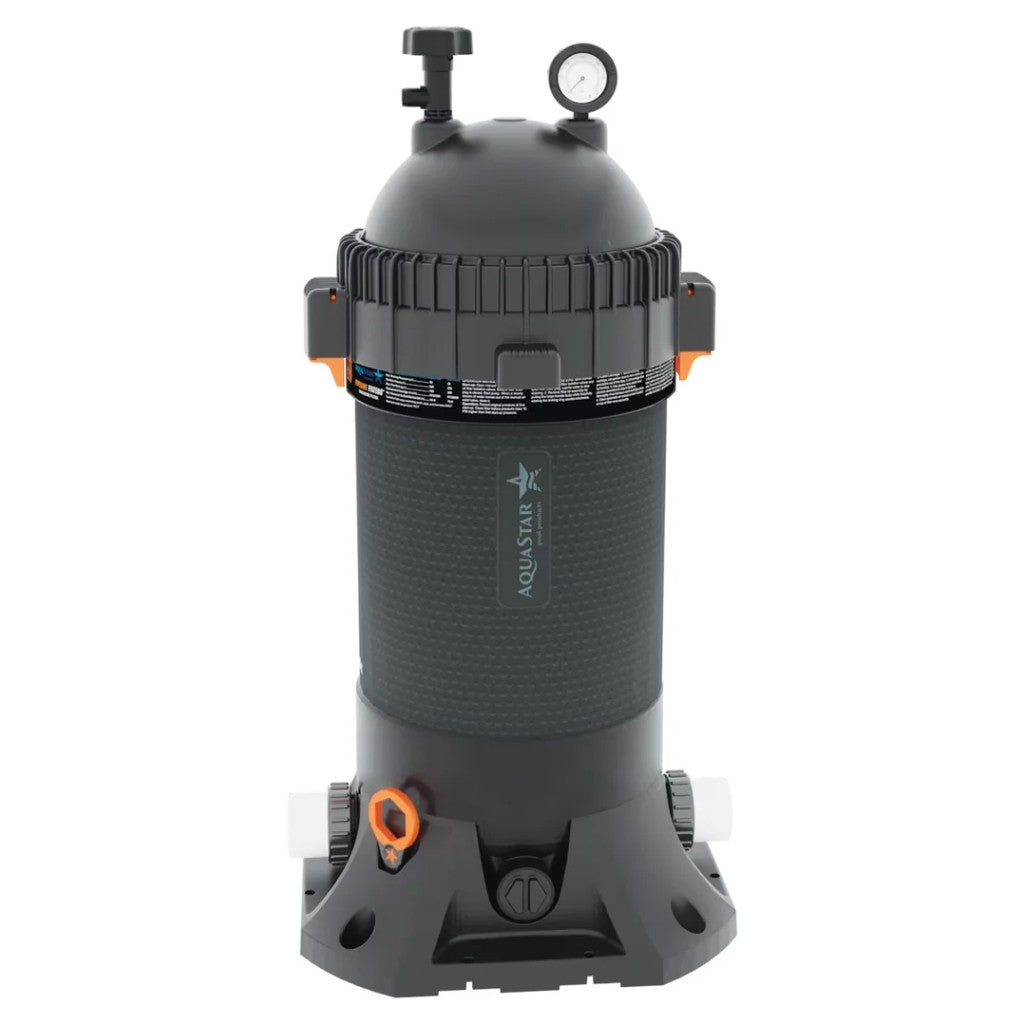

AquaStar Pipeline PLF27000 Cartridge Filter
The AquaStar Pipeline PLF27000 is a high-performance swimming pool cartridge filter engineered for excellent water clarity, efficient hydraulic performance, simplified servicing, and high-flow residential or commercial pool applications.
Advanced Pool Filtration in a Streamlined Design

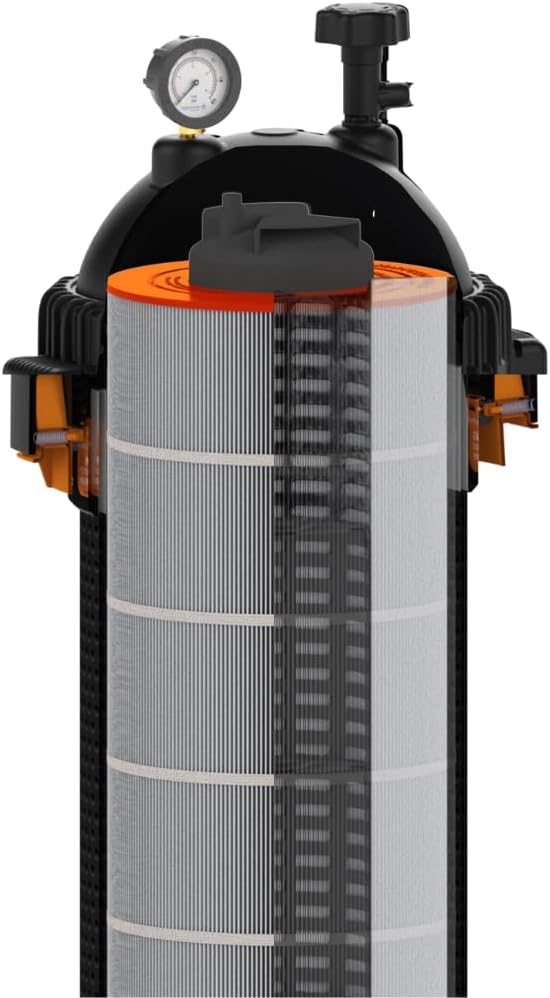

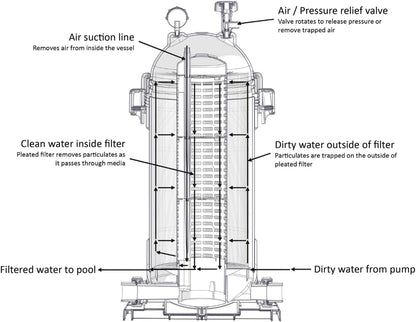

The AquaStar Pipeline Cartridge Filter PLF27000 is designed to move water efficiently through the entire cartridge rather than concentrating flow in only a portion of the filter media. AquaStar's large uniform tank, engineered pleat spacing, and high-flow center-core design help distribute water throughout the filtration surface for effective debris capture with reduced hydraulic restriction.
This makes the PLF27000 a strong choice for new pool construction, equipment-pad upgrades, and replacement installations where pool owners and professionals want cartridge-filter convenience together with high flow capability and excellent water clarity.
Uniform 360° Water Flow
The large, uniform tank is engineered to distribute water around the cartridge media for more consistent use of the available filtration surface.
Engineered Cartridge Design
Purpose-designed pleat spacing helps improve debris capture while supporting efficient flow through the filter media.
High-Flow Performance
With a maximum and residential design filtration flow rate of 150 GPM, the PLF27000 is built for demanding circulation systems.
Service-Friendly Access

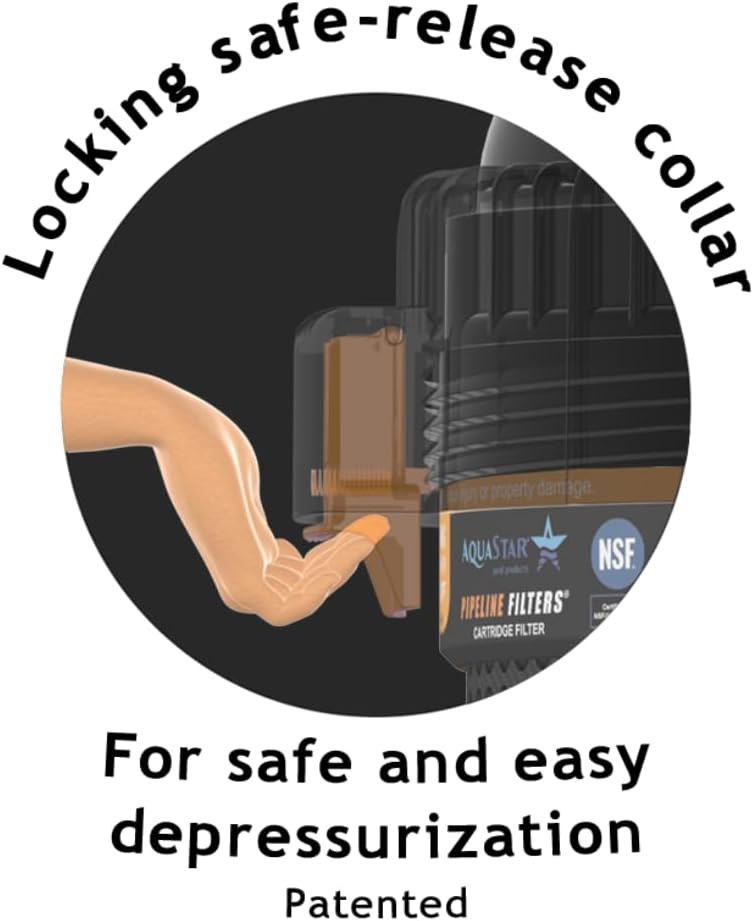

AquaStar's patented double-locking design is engineered for controlled depressurization and convenient access without a traditional tank clamp.
Why Choose the AquaStar Pipeline PLF27000?
- 200 sq. ft. filtration area in a compact cartridge-filter design.
- Up to 150 GPM maximum flow rate for high-performance residential circulation systems.
- 150 GPM residential design filtration flow rate, subject to applicable local codes and system design.
- 75 GPM public-pool design filtration flow rate.
- 27,000-gallon public pool capacity based on a 6-hour turnover.
- 36,000-gallon public pool capacity based on an 8-hour turnover.
- Up to 108,000-gallon residential turnover capacity based on a 12-hour turnover.
- Engineered cartridge pleat spacing helps optimize filtration area and debris capture.
- Large uniform tank promotes even water distribution throughout the filter media.
- High-flow center-core design supports efficient circulation.
- Patented double-locking system is designed for safer, easier filter access and depressurization.
- Current production includes a drain plug wrench and holder for convenient filter servicing.
AquaStar PLF27000 Specifications
| Manufacturer | AquaStar Pool Products |
|---|---|
| Product Line | Pipeline Filter |
| Model Number | PLF27000 |
| Filter Type | Cartridge Pool Filter |
| Filter Area | 200 sq. ft. |
| Maximum Flow Rate | 150 GPM |
| Residential Design Filtration Flow Rate | 150 GPM* |
| Public Design Filtration Flow Rate | 75 GPM |
| Public Pool 6-Hour Turnover Capacity | 27,000 gallons |
| Public Pool 8-Hour Turnover Capacity | 36,000 gallons |
| Residential Pool 12-Hour Turnover Capacity | 108,000 gallons |
| Maximum Working Pressure | 50 PSI |
| Current OnCore Replacement Cartridge | PF27CART |
| Minimum Vertical Clearance | 61 in. |
| Maximum Water Temperature | 110°F |
| Approved Water Application | Freshwater swimming pools, spas, and hot tubs |
*Local residential pool building codes and energy-efficiency requirements may specify lower filtration flow rates.
Compatibility & Sizing Information
The AquaStar PLF27000 is designed for freshwater swimming pools, spas, and hot tubs. Correct filter selection should be based on the required system flow rate and turnover requirement rather than pool gallonage alone.
AquaStar currently lists the PLF27000 at a 150 GPM residential design filtration flow rate and 75 GPM public design filtration flow rate. Pump performance, plumbing diameter, equipment-pad configuration, local code requirements, and total system resistance must also be considered when sizing a filtration system.
Important: AquaStar has offered different cartridge configurations over the life of the Pipeline product line. Current manufacturer specifications identify PF27CART for the current OnCore configuration. When purchasing replacement filter media for an existing Pipeline filter, verify the filter's cartridge configuration and existing part number before ordering.
Installation & Maintenance
The filter should be installed as part of a properly sized pool circulation system and in accordance with AquaStar's installation instructions and applicable local codes.
- Maintain at least 61 inches of vertical clearance for the PLF27000.
- Never operate the filter above its 50 PSI maximum working pressure.
- Always shut the pump off and fully relieve system pressure before opening or servicing the filter.
- Clean the cartridge as needed based on filter pressure, water conditions, debris load, and manufacturer service recommendations.
- Inspect seals, O-rings, unions, and related components during routine filter maintenance.
Frequently Asked Questions
What is the AquaStar PLF27000?
The PLF27000 is AquaStar's Pipeline cartridge swimming pool filter featuring 200 sq. ft. of filtration area and a maximum flow rate of 150 GPM.
Is the AquaStar PLF27000 only for pools up to 27,000 gallons?
No. The 27,000-gallon figure represents the manufacturer's public-pool capacity at a 6-hour turnover rate. AquaStar lists substantially higher residential turnover capacities, including 108,000 gallons at a 12-hour turnover.
What is the maximum flow rate of the PLF27000?
The maximum flow rate and listed residential design filtration flow rate are 150 GPM. Actual operating flow must comply with the complete pool system design and applicable local requirements.
How much filter area does the PLF27000 have?
Current AquaStar specifications list 200 square feet of cartridge filtration area.
What replacement cartridge does the AquaStar PLF27000 use?
AquaStar currently lists PF27CART as the replacement cartridge for current OnCore PLF27000 models. Older Pure Pleat configurations may use different replacement media, so the existing cartridge or filter configuration should be confirmed before ordering.
Does the PLF27000 require backwashing?
No. As a cartridge filter, routine cleaning is performed by removing and cleaning the cartridge rather than backwashing through a multiport valve.
How much room is needed above the filter?
AquaStar specifies a minimum vertical clearance of 61 inches for the PLF27000 to allow appropriate access and servicing.
What is the maximum operating pressure?
The PLF27000 has a maximum working pressure of 50 PSI.
What's Included
This listing is for the AquaStar Pipeline PLF27000 cartridge filter assembly. Current production incorporates AquaStar's Pipeline filtration system and includes the manufacturer's drain plug wrench and integrated wrench holder.
Package contents and production revisions can change over time. Components not specifically identified as included should not be assumed to be supplied with the filter.
Need Help Confirming Filter Fitment?
Replacing an existing pool filter or building a new equipment pad? Aqua Terra Backyard can help verify the correct AquaStar filter model, flow requirements, replacement cartridge, and system compatibility before you order. Providing your existing filter model, pump model, pool volume, and plumbing size will help ensure the correct fit.
