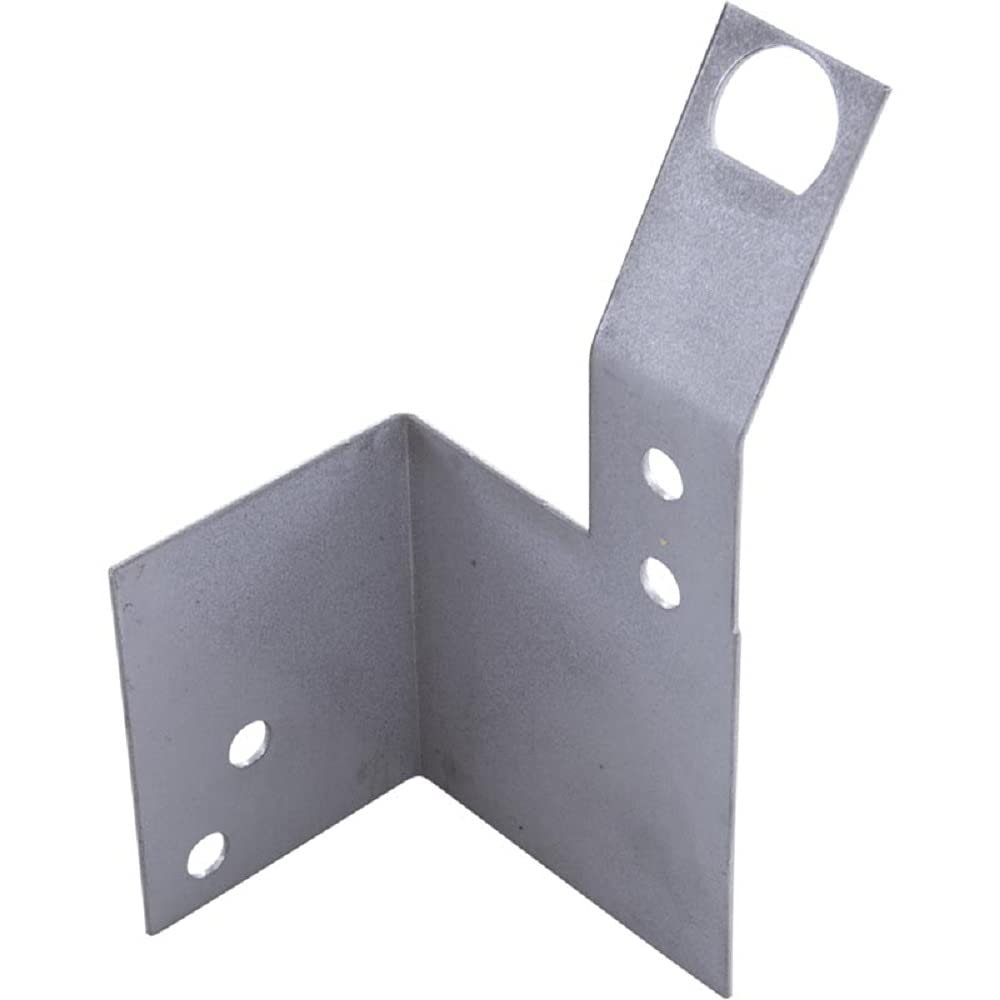

Raypak 305161F Pilot Mounting Bracket Replacement Part
Raypak 305161F Pilot Mounting Bracket Replacement Part
Raypak 305161F Pilot Mounting Bracket Replacement Part
If the pilot assembly is not staying where it should, the flame position is off, or ignition remains inconsistent after other pilot parts have been checked, the bracket itself may be the real problem. Pilot alignment issues usually show up as weak startup, delayed light-off, or repeat no-ignite complaints.
This pilot mounting bracket is the support piece used to secure the pilot assembly in the proper location. When the bracket is bent, worn, or damaged by heat or service work, the pilot can shift out of position and ignition reliability suffers. Replacing it restores the hardware that keeps the pilot where the heater expects it to be.
- Pilot assembly is loose or not sitting in the correct position
- Ignition remains inconsistent because alignment is off
- Bracket is damaged by heat, corrosion, or prior service
- Pilot flame location is no longer correct during startup
What this part does: It secures the pilot assembly in the proper position for reliable ignition operation.
Compatibility: Used on select Raypak models. Confirm with your model number before ordering.
- Part Number: 305161F
- Type: Pilot mounting bracket
- Application: Pilot assembly support
OEM Value: A genuine Raypak bracket helps maintain the intended pilot alignment in the combustion area. Ignition repairs go better when the pilot hardware matches the original heater layout instead of forcing a questionable fit.
